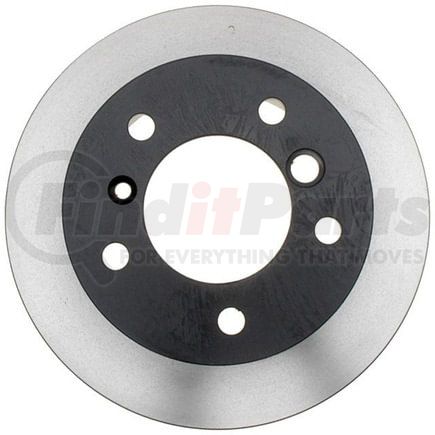

(888) 312-8812 Login SignupRAYBESTOS 980164 Raybestos Specialty - Truck Brake Rotor
$121.97
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980164 Part Description
Manufacturer
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2006-2002 Freightliner Sprinter 2500 Rear, 2006-2003 Dodge Sprinter 2500 Rear, 2018-2009 Mercedes-Benz G550 Rear, 2008-2002 Mercedes-Benz G500 Rear, 2005-2002 Freightliner Sprinter 3500 Rear, 2005-2003 Dodge Sprinter 3500 Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980164 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.347 IN |
| Center Hole Diameter | 85 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.551 IN |
| Discard Thickness | 14 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Mounting Bolt Hole Circle Diameter | 130 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.625 IN |
| Nominal Thickness | 15.9 MM |
| Outside Diameter | 10.69 IN |
| Outside Diameter | 271.55 MM |
| Overall Height | 3.8 IN |
| Overall Height | 96.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352176795 |
RAYBESTOS 980164 Cross References
| Brand | Part Number |
|---|---|
| 829352176795, 120.35070 | |
| ADVANCE AUTO PARTS | YH145432, YH145432C, YH145432P |
| ATE BRAKE PRODUCTS | 416110, SP16110 |
| AUTOSPECIALTY | EBR663 |
| AUTOXTRA | AX34227 |
| AUTOZONE | 34227, 34227DG, 43147 |
| BENDIX | 145432 |
| BOSCH | 16011497 |
| BRAKEBEST | 16010527, 16011497, 980164, 980164FZN, 980164R, 980164RGS, BD126279 |
| BREMBO | 08.7725.10 |
| Brembo | 08.7725.20 |
| CENTRIC | 120.35045, 120.35070, 121.35045, 121.35070, 125.35045, 125.35045CRY, 125.35070, 126.35045SL, 126.35045SR, 126.35070CSL, 126.35070CSR, 126.35070SL, 126.35070SR, 127.35045L, 127.35045R, 127.35070L, 127.35070R, 128.35045L, 128.35045R, 128.35070L, 128.35070R, 320.35045F, 320.35070, 320.35070H, 320.3507 |
| CHRYSLER | 05103603AA, 5103603AA, 5103603AB, 5103603AC |
| Casting Numbers | 211564-C, 325998 |
| Centric Parts | 120.35045, 120.35070, 121.35045, 121.35070, 125.35045, 125.35045CRY, 125.35070, 126.35045SL, 126.35045SR, 126.35070CSL, 126.35070CSR, 126.35070SL, 126.35070SR, 127.35045L, 127.35045R, 127.35070L, 127.35070R, 128.35045L, 128.35045R, 128.35070L, 128.35070R, 320.35045F, 320.35070, 320.35070H |
| DURA CORP | BR34227 |
| DuraGo | BR34227 |
| FREIGHTLINER CUSTOM CHASSIS | 9024230412 |
| Freightliner | 9024230412 |
| MAGMA PRODUCTS | PSR385090 |
| MERCEDES-BENZ | 2D0615601A, 9024230312, 902423031207, 9024230512, 9024230612, 9024230615 |
| MIGHTY DISTRIBUTING SYSTEM | 34227 |
| MONROE BRAKES | BD126279 |
| NAPA BRAKES | SDK6111 |
| NEWTEK AUTOMOTIVE | 34227 |
| Newtek Automotive USA | 34227 |
| PAGID | 355105811 |
| PAGID Racing | 355105811 |
| PROMAX | 14-34227 |
| PRONTO | BR34227 |
| QUALIS | 34227 |
| QUALITY BRAND | Q4229 |
| QUINTON HAZELL | BDC4700 |
| Qualis | 43147 |
| TRW | 4088 |
| UAP | 34227 |
| Ultra Brake | ME-202 |
| VAICO | V1040056, V1040079 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51544 |
| WABCO | PS126279 |
| WABCO - Archived | PS126279 |
| WAGNER | BD126279E, BD126382, BD126279 |
| WAGNER BRAKE | BD126279 |
| WINHERE | 661519 |
| WORLDPAC | 1407-78473 |
| Wagner Brake | BD126279E, BD126382E |
RAYBESTOS 980164 Fits Vehicles
- Freightliner Sprinter 2500 (2002-2006)
- Freightliner Sprinter 3500 (2002-2006)
- Mercedes-Benz Sprinter (2007-2012)
- Mercedes-Benz G550 (2009-2018)
- Dodge Sprinter 3500 (2003-2006)
- Dodge Sprinter 2500 (2003-2006)
- Mercedes-Benz G55 AMG (2003-2011)
- Mercedes-Benz G500 (2002-2008)
