CENTRIC part description

Product Description

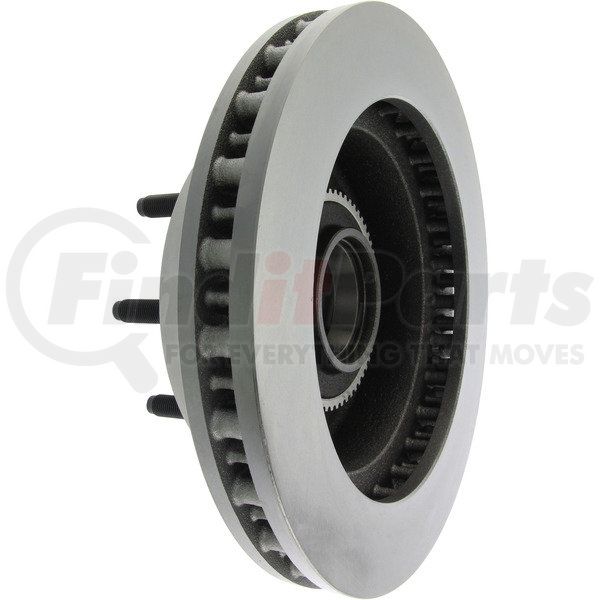

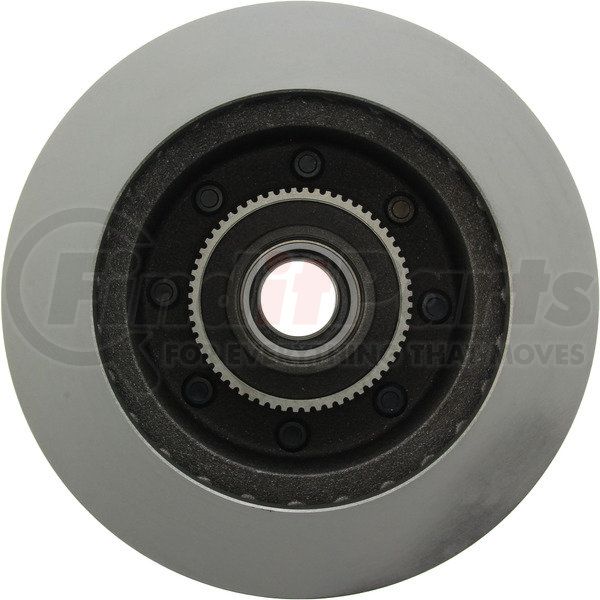

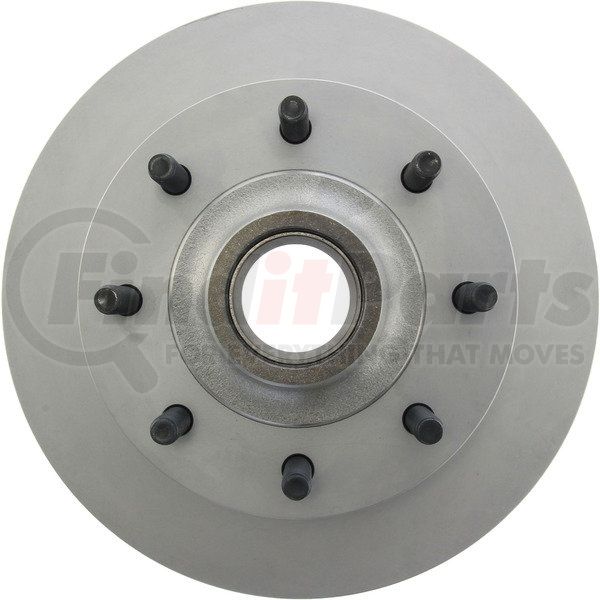

GCX Rotor with Full Coating

Application Summary

2003 - 2005 Ford Excursion, 2003 - 2004 Ford F-250 Super Duty, 2003 - 2004 Ford F-350 Super Duty

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs

Centric; Centric Parts; GxC Brake; GxC Rotor; Brake Rotor

Product Attributes

Discard Thickness 1.417 IN
Discard Thickness 36.00 MM
Nominal Thickness 1.496 IN
Nominal Thickness 38.00 MM
Disc Finish Fully Coated
Hat Finish Coated
Stud Thread Diameter 14.00 MM
Outside Diameter 13.031 IN
Outside Diameter 331.00 MM
ABS Tone Ring Included Yes
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bolt Thread Pitch 1.50 MM
Center Hole Diameter 4.921 IN
Center Hole Diameter 125.00 MM
Mounting Bolt Hole Circle Diameter 6.693 IN
Mounting Bolt Hole Circle Diameter 170.00 MM
Stud/Lug Hole Quantity 8
Disc Mounting [cntrc] Hub & Rotor
Height 5.650
Hub Hole/Whl Reg [cntrc] 125.0 MM
Misc Holes [cntrc] 8
Solid / Vented Pillar
Vane Style [cntrc] Pillar
Weight [cntrc] 21.360 KG
Weight [cntrc] 47.000 LB
Disc Mounting Hub & Rotor
Hub Hole Diameter 125.0 MM
Misc Holes 8
Vane Style Pillar
Weight 21.360 KG
Weight 47.000 LB

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
UPC 00889590392975

Part Interchanges

CENTRIC 320.65104F Cross Reference

We have 2 alternatives for the 320.65104F by CENTRIC:

Fits Vehicles

  • Ford Excursion (2003-2005)
  • Ford F-350 Super Duty (2003-2004)
  • Ford F-250 Super Duty (2003-2004)
