CENTRIC 320.65046F Centric GCX Rotor with Full Coating

★★★★★ (0)

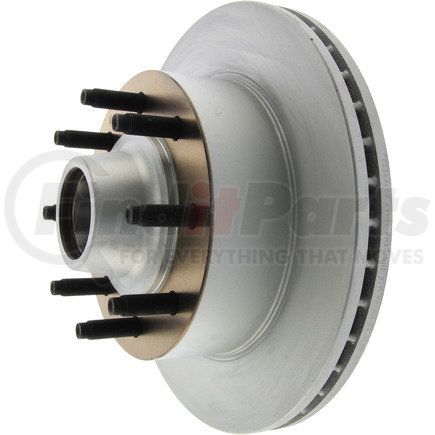

Centric 320.65046F Disc Brake Rotor and Hub Assembly Centric GCX Rotor with Full Coating
CENTRIC
Tap to view 4 more

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

CENTRIC 320.65046F Part Description

Manufacturer

CENTRIC

Product Description

Centric GCX Rotor with Full Coating

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs

CENTRIC 320.65046F Specifications

Product Attributes

Inner Seal # [cntrc]417.65003
California Proposition 65 Text [cntrc]WARNING: Cancer and Reproductive Harm
Weight [cntrc] Kgs17.500
Outer Bearing # [cntrc]415.68002
Misc Holes [cntrc]0
Product Grade [cntrc]Premium
Weight [cntrc] Lbs38.500
Disc Mounting [cntrc]Hub & Rotor
Inner Bearing # [cntrc]415.68004
Inner Race # [cntrc]416.68003
Outer Race # [cntrc]416.68001
Vane Style [cntrc]Straight
Discard Thickness28.000 MM
Discard Thickness1.102 IN
Nominal Thickness30.000 MM
Nominal Thickness1.181 IN
Disc FinishFully Coated
Hat FinishCoated
Stud Thread Diameter0.563 IN
Overall Height143.300 MM
Overall Height5.642 IN
ABS Tone Ring IncludedYes
Surface TypeSmooth
Rotor Outside Diameter331.000 MM
Rotor Outside Diameter13.031 in
Solid Or Vented Type RotorVented
Bolt Thread Pitch18.000 IN
Bearings IncludedNo
Center Hole Diameter123.400 MM
Center Hole Diameter4.858 IN
Mounting Bolt Hole Circle Diameter165.100 MM
Mounting Bolt Hole Circle Diameter6.500 IN
Stud/Lug Hole Quantity8

Additional Information

Harmonized Tariff Code (HTS)8708305030
NAFTA Preference Criterion CodeB
Country of Origin (Primary)CN
UPC00889590392500

CENTRIC 320.65046F Cross References

BrandPart Number
MAGMA PRODUCTSPSR207280
RAYBESTOS66528, 66528FZN, 66528R
Raybestos Brakes66528, 66528FZN, 66528R

CENTRIC 320.65046F Fits Vehicles

  • Ford Club Wagon (1995-1998)
  • Ford E-150 (2007)
  • Ford E-150 Econoline (2007)
  • Ford E-250 (2003-2007)
  • Ford E-250 Econoline (1995-2002)
  • Ford E-350 Club Wagon (2002-2005)
  • Ford E-350 Econoline (1995-2000, 2007)
  • Ford E-350 Econoline Club Wagon (1995-2002)
  • Ford E-350 Super Duty (1999-2007)
  • Ford Econoline (1999-2005)
  • Ford F-250 (2006-2008)
  • Ford F-350 (1998-2005)
