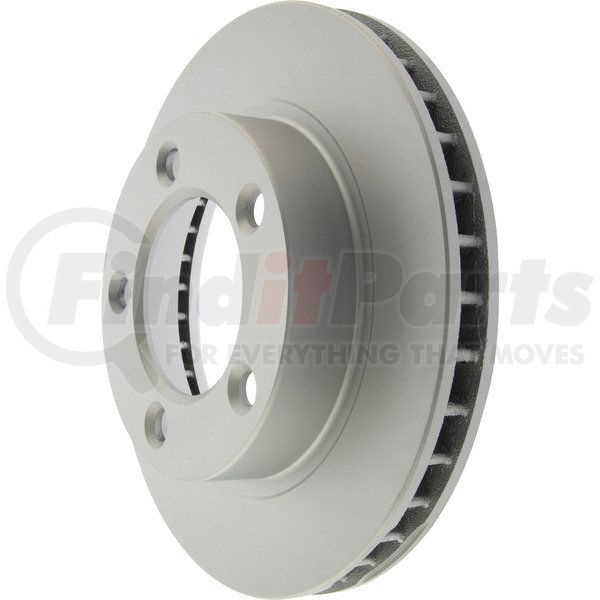

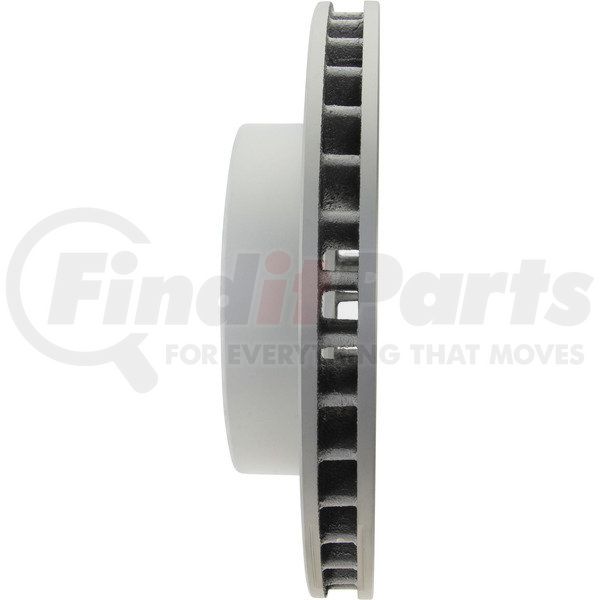

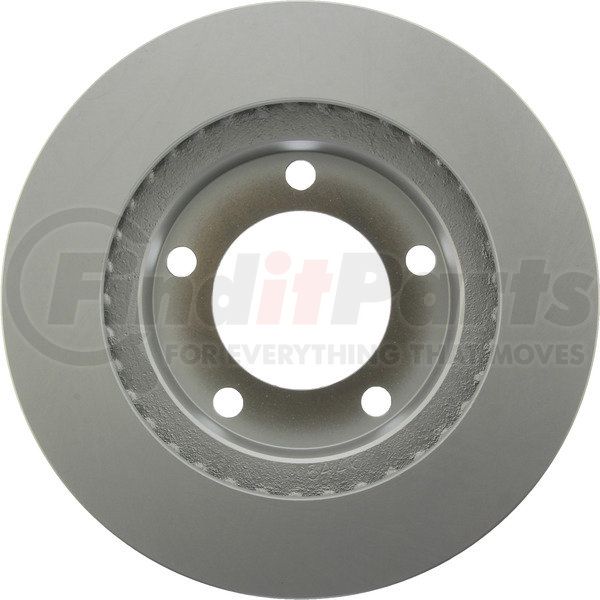

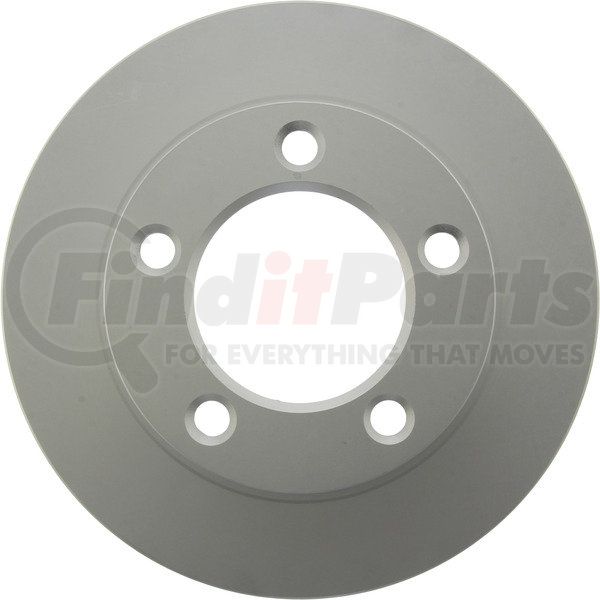

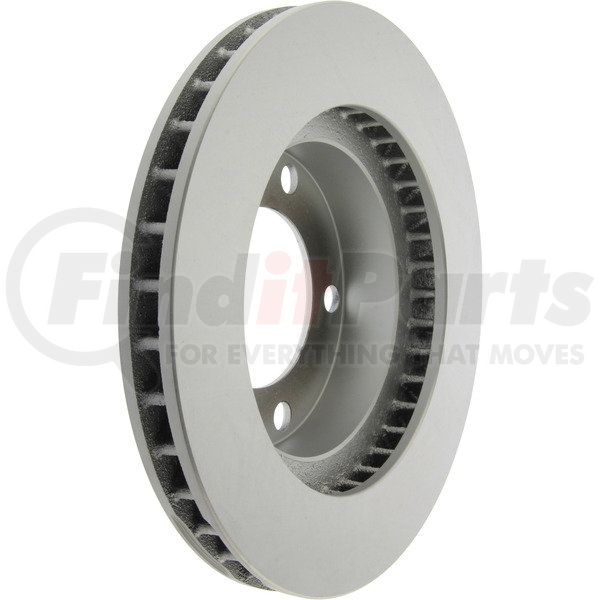

Centric 320.65013F - Centric GCX Rotor with Full Coating
$6849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Lbs | 12.200 |
| Misc Holes [cntrc] | 0 |
| Inner Seal # [cntrc] | 417.68001 |
| Inner Bearing # [cntrc] | 410.91037 |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 5.550 |
| Disc Mounting [cntrc] | Behind the Hub |
| Outer Bearing # [cntrc] | 410.91035 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 28.450 MM |
| Discard Thickness | 1.120 IN |
| Nominal Thickness | 30.400 MM |
| Nominal Thickness | 1.197 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 69.000 MM |
| Overall Height | 2.717 IN |
| Outside Diameter | 297.700 MM |
| Outside Diameter | 11.720 IN |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.878 IN |
| Center Hole Diameter | 98.500 MM |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Mounting Bolt Hole Diameter | 16.400 MM |
| Mounting Bolt Hole Diameter | 0.646 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590392395 |
Part Interchanges
CENTRIC 320.65013F Cross Reference
We have 2 alternatives for the 320.65013F by CENTRIC:
Fits Vehicles
- Ford F-100 (1976)
- Ford Bronco (1976-1993)
- Ford F-150 (1976-1993)
