(888) 312-8812 Login SignupCENTRIC 320.63086F Centric GCX Rotor with Full Coating
Tap to view 4 more
$11199
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Sep 2
CENTRIC 320.63086F Part Description
Manufacturer
Product Description

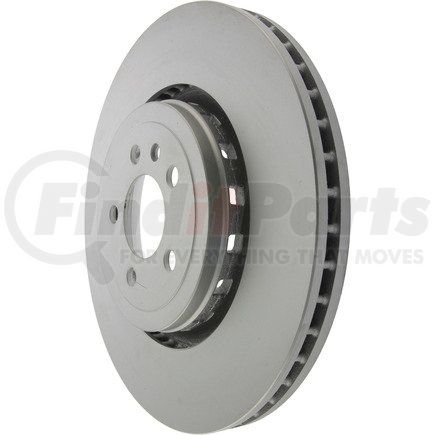

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.63086F Specifications
Product Attributes
| Hat Id [cntrc] In | 7.128 |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Lbs | 33.050 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 15.000 |
| Hat Id [cntrc] Mm | 181.050 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Notes [cntrc] | Vented Hat |
| OEM Vane Count [cntrc] | 47 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 30.500 MM |
| Discard Thickness | 1.201 IN |
| Nominal Thickness | 32.000 MM |
| Nominal Thickness | 1.260 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 56.500 MM |
| Overall Height | 2.224 IN |
| Outside Diameter | 370.000 MM |
| Outside Diameter | 14.567 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.854 IN |
| Center Hole Diameter | 72.500 MM |
| Mounting Bolt Hole Circle Diameter | 114.600 MM |
| Mounting Bolt Hole Circle Diameter | 4.512 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.600 MM |
| Stud/Lug Hole Diameter | 0.654 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00889590392340 |
CENTRIC 320.63086F Cross References
CENTRIC 320.63086F Fits Vehicles
- Dodge Challenger (2017-2022)
- Chrysler 300 (2014-2021)
- Dodge Charger (2014-2022)
