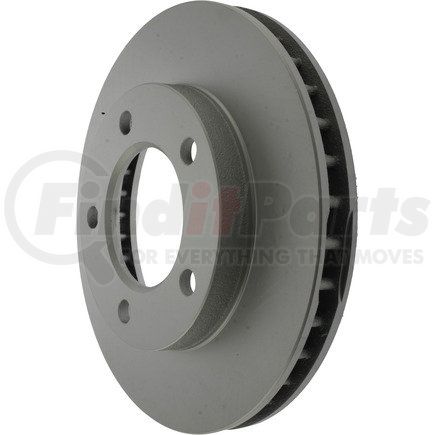

CENTRIC 320.63004F Centric GCX Rotor with Full Coating

★★★★★ (0)
Centric 320.63004F Disc Brake Rotor Centric GCX Rotor with Full Coating
CENTRIC
Tap to view 4 more

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

CENTRIC 320.63004F Part Description

Manufacturer

CENTRIC

Product Description

Centric GCX Rotor with Full Coating

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
  • For the best corrosion resistance
  • RS200™ Zinc-Aluminum Rich Coating
  • Optimal Surface Finish
  • For consistent and confident braking from the first stop
  • Carbon Enhanved Advanced Metallurgy
  • For optimal heat transfer and structural strength
  • OE Vane Design and Plate Thickness
  • For heat capacity and strength
  • Low Initial Lateral Run-Out
  • For smooth vibration free stopping
  • Precision Balance
  • For vibration free performance

CENTRIC 320.63004F Specifications

Product Attributes

Disc Mounting [cntrc]Behind the Hub
Vane Style [cntrc]Straight
Misc Holes [cntrc]0
Weight [cntrc] Kgs7.860
Weight [cntrc] Lbs17.300
Product Grade [cntrc]Premium
California Proposition 65 Text [cntrc]WARNING: Cancer and Reproductive Harm
Discard Thickness28.450 MM
Discard Thickness1.120 IN
Nominal Thickness30.100 MM
Nominal Thickness1.185 IN
Disc FinishFully Coated
Hat FinishCoated
Overall Height55.800 MM
Overall Height2.197 IN
Outside Diameter11.728 IN
Outside Diameter297.900 MM
Mounting Bolt Hole Quantity5
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Bearings IncludedNo
Center Hole Diameter3.764 IN
Center Hole Diameter95.600 MM
Mounting Bolt Hole Circle Diameter139.700 MM
Mounting Bolt Hole Circle Diameter5.500 IN
Mounting Bolt Hole Diameter16.500 MM
Mounting Bolt Hole Diameter0.650 IN

Additional Information

NAFTA Preference Criterion CodeB
Country of Origin (Primary)CN
Harmonized Tariff Code (HTS)8708305030
UPC00889590392104

CENTRIC 320.63004F Cross References

BrandPart Number
RAYBESTOS3550R
Raybestos Brakes3550R

CENTRIC 320.63004F Fits Vehicles

  • International Scout II (1974-1980)
  • Jeep CJ5 (1976-1979)
  • Jeep CJ7 (1976-1979)
