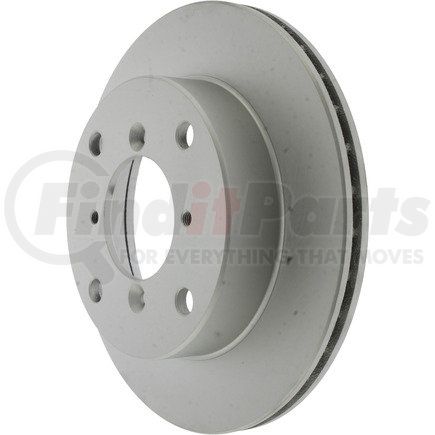

Centric 320.48001F - Centric GCX Rotor with Full Coating
$3249
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Kgs | 3.860 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 4 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 8.500 |
| Discard Thickness | 15.000 MM |
| Discard Thickness | 0.591 IN |
| Nominal Thickness | 0.669 IN |
| Nominal Thickness | 17.000 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 50.000 MM |
| Overall Height | 1.969 IN |
| Outside Diameter | 9.102 IN |
| Outside Diameter | 231.200 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 64.000 MM |
| Center Hole Diameter | 2.520 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 12.750 MM |
| Stud/Lug Hole Diameter | 0.502 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 889590390407 |
Part Interchanges
CENTRIC 320.48001F Cross Reference
We have 1 alternatives for the 320.48001F by CENTRIC:
Fits Vehicles
- Geo Metro (1989-1997)
- Chevrolet Metro (1992, 1998-2001)
- Pontiac Firefly (1995-2000)
- Suzuki Swift (1989-1990, 1995-2001)
