DELPHI TC5698 Part Description
Manufacturer
Product Description

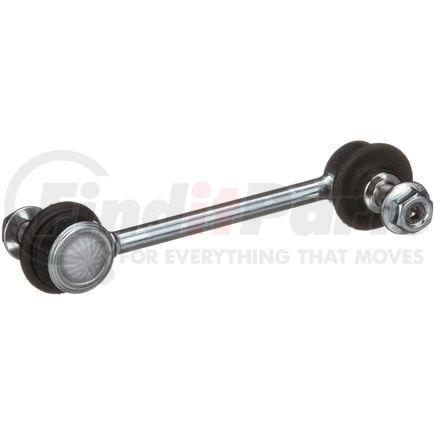

Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5698 Specifications
Product Attributes
| Position(s) | Rear |
| Item Grade | Standard Replacement |
| Length | 4.921 IN |
| Length | 125.00 MM |
| End 1 Type | Ball Joint |
| End 2 Type | Ball Joint |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Bolt Thread Size | M10 |
| Width | 1.575 IN |
| Width | 40 MM |
| Washers Included | No |
| Height | 96.00 MM |
| Height | 3.780 IN |
| Grade Type | Standard Replacement |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Bolt Head Diameter | 10.00 MM |
| Weight | 0.15 lb |
| Bearing Material | Plastic |
| Bolt Length | 24.50 MM |
| Bolt Length | 0.965 IN |
| Bolt Thread Diameter | 10.00 MM |
| Locking Nuts Included | Yes |
| Bolt Head Diameter | 0.390 IN |
| Bolt Thread Diameter | 0.390 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604311875 |
| VMRS Code | 016007000 |
| UNSPSC | 25172001 |
DELPHI TC5698 Cross References
DELPHI TC5698 Fits Vehicles
- Lincoln MKX (2011-2015)
- Ford Edge (2011-2014)
