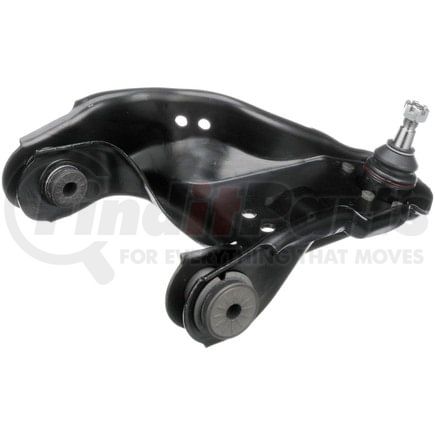

Delphi TC5445 - Control Arm and Ball Joint Assembly
$7999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 11.417 IN |
| Control Arm Maximum Width | 290.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 2.717 IN |
| Ball Joint Stud Length | 69.00 MM |
| Control Arm Maximum Length | 11.614 IN |
| Control Arm Maximum Length | 295.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604296660 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- GMC Typhoon (1992-1993)
- GMC Syclone (1991)
- GMC S15 (1984-1990)
- GMC S15 Jimmy (1984-1991)
- Chevrolet S10 Blazer (1984-1994)
- Isuzu Hombre (1998-2000)
- Oldsmobile Bravada (1991-1994, 1996-2001)
- GMC Sonoma (1991-2004)
- GMC Jimmy (1992-2005)
- Chevrolet S10 (1984-2004)
- Chevrolet Blazer (1995-2005)
