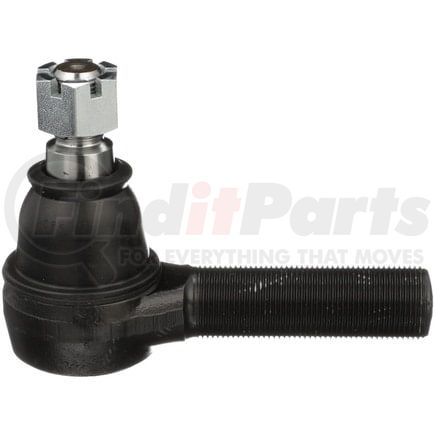

Delphi TA5578 - Tie Rod End
$8899
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left, Left Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Length | 181.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 69 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 1.243 IN |
| End 2 Thread Diameter | 31.56 MM |
| Height | 134.00 MM |
| Housing Material | Steel |
| Tube Diameter | 1.250 IN |
| Tube Diameter | 31.56 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 4.51 lb |
| Cone Outside Diameter | 31.90 MM |
| Bearing Material | Steel |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| Length - Stud Center to End | 5.709 IN |
| Length - Stud Center to End | 145.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 12 |
| End 1 Threads Per Inch | 14 |
| End 1 Thread Diameter | 0.875 IN |
| End 1 Thread Diameter | 22.23 MM |
| Shank Length | 31.90 MM |
| Stud Length | 31.90 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 1.256 IN |
| Stud Length | 1.256 IN |
| Cone Outside Diameter | 1.256 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604313718 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
Part Interchanges
- MOOG Chassis Products ES2116L
- MOOG Chassis Products ES346L
- MOOG Chassis Products ES376L
- MOOG Chassis Products ES376R
- MOOG Chassis Products ES431L
- Ford B8TZ-3A131B
- Ford D0HZ-3A131B
- Volvo R230071
- International Harvester (IHC) 10-QH248-P4
- International Harvester (IHC) 10QU310P1
- International Harvester (IHC) 18QK28A
- International Harvester (IHC) 220TR115
- International Harvester (IHC) B8TZ-3A131B
- International Harvester (IHC) D0HZ-3A131B
- International Harvester (IHC) FTR431L
- International Harvester (IHC) R230071
- Mack 10-QH248-P4
- Mack 10QU310P1
- Mack 18QK28A
Fits Vehicles
- Peterbilt 282 (1965-1980)
- Freightliner Classic XL (2001-2009)
- International 8200 (1990-1997)
- International 8100 (1990-2002)
- International 8300 (1989-1994)
- International 4900 (1990-2002)
- International 4800 (1990-2002)
- International 4700 (1990-1995)
- International 4600 (1990-1994)
- International 4200 (2002-2006)
- International 3800 (1987, 1990)
- International 3700 (1990)
- International 4300 (2002-2012)
