DELPHI part description

Product Description

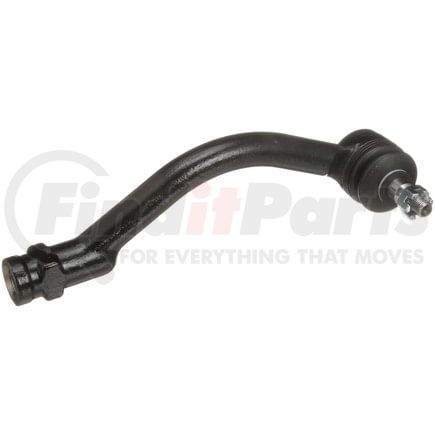

Tie Rod End

Product Attributes

Position(s) Right Outer
Item Grade Standard Replacement
Length 240.0 MM
Color Black
End 2 Gender Female
Pre-Greased Yes
Grease Fitting Included No
Dust Boot Included Yes
Width 67.0 MM
Type Bent
Mounting Hardware Included Yes
End 2 Thread Diameter 0.63 IN
End 2 Thread Diameter 16.0 MM
Height 74.7 MM
Housing Material Steel
36 0.787 IN
Tube Diameter 20.0 MM
Adjustable No
Greasable No
Weight 1.89 lb
Cone Outside Diameter 15.0 MM
Bearing Material Plastic
End 1 Thread Direction Clockwise (Right)
End 2 Thread Direction Clockwise (Right)
Stud Type Threaded
End 2 Thread Pitch 1.5 MM
Length Stud Center to End 8.622 IN
Length Stud Center to End 219.0 MM
Dust Boot Material Choloroprene Rubber (CR)
Tie Rod Material Steel
End 1 Thread Diameter 0.394 IN
End 1 Thread Diameter 10.0 MM

Additional Information

Harmonized Tariff Code (Schedule B) 8708948000
Harmonized Tariff Code (HTS) 8708947550
Warranty Special Limited Lifetime
Warranty Special UOM LF
Country of Origin (Primary) TR
UPC 00689604311776
VMRS Code 015004019
UNSPSC 25174205

Part Interchanges

Fits Vehicles

  • Hyundai Sonata (2009-2010)
  • Hyundai Azera (2008-2011)
  • Kia Amanti (2006-2009)
