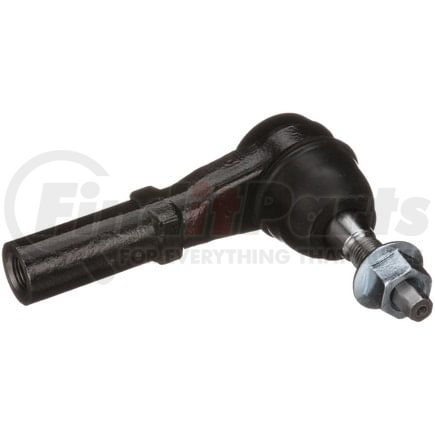

DELPHI TA5498 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5498 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 143.00 MM |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 45 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.591 IN |
| End 2 Thread Diameter | 15.00 MM |
| Height | 121.80 MM |
| Housing Material | Steel |
| Tube Diameter | 0.984 IN |
| Tube Diameter | 25.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.41 lb |
| Cone Outside Diameter | 18.80 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 4.764 IN |
| Length - Stud Center to End | 121.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 18.80 MM |
| Stud Length | 18.80 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.740 IN |
| Stud Length | 0.740 IN |
| Cone Outside Diameter | 0.740 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604311707 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5498 Cross References
DELPHI TA5498 Fits Vehicles
- Chrysler Aspen (2007-2009)
- Dodge Durango (2004-2009)
