CENTRIC 320.40085 Part Description
Manufacturer
Product Description

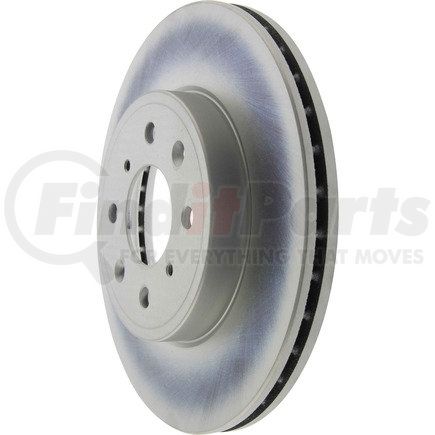

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.40085 Specifications
Product Attributes
| Weight [cntrc] Kgs | 5.400 |
| Hat Id [cntrc] In | 5.575 |
| Hat Id [cntrc] Mm | 141.600 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 11.900 |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 4 |
| Vane Style [cntrc] | Straight |
| OEM Vane Count [cntrc] | 36 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 0.748 IN |
| Discard Thickness | 19.000 MM |
| Nominal Thickness | 21.000 MM |
| Nominal Thickness | 0.827 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 44.600 MM |
| Overall Height | 1.756 IN |
| Outside Diameter | 10.315 IN |
| Outside Diameter | 262.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.402 IN |
| Center Hole Diameter | 61.000 MM |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 12.600 MM |
| Stud/Lug Hole Diameter | 0.496 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590388855 |
CENTRIC 320.40085 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 981199, 981199FZN, 981199R |
CENTRIC 320.40085 Cross References
We have 3 alternatives for the 320.40085 by CENTRIC:
