(888) 312-8812 Login SignupRAYBESTOS 981199 Raybestos Specialty - Street Performance Coated Brake Rotor
$54.77
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 981199 Part Description
Manufacturer
Product Description

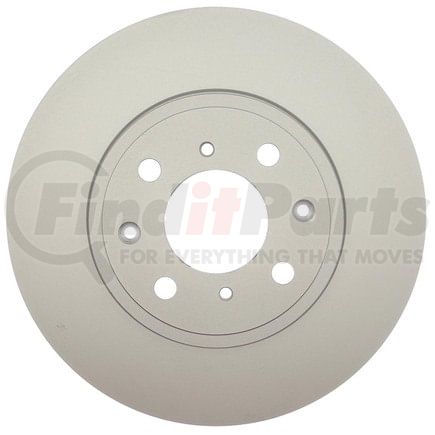

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2020-2014 Honda Fit Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 981199 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.402 IN |
| Center Hole Diameter | 61 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.748 IN |
| Discard Thickness | 19 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.299 IN |
| Inside Diameter | 160 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.7 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.827 IN |
| Nominal Thickness | 21 MM |
| Outside Diameter | 10.303 IN |
| Outside Diameter | 261.7 MM |
| Overall Height | 1.76 IN |
| Overall Height | 44.7 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213190304 |
RAYBESTOS 981199 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH524403, YH524403C, YH524403P |
| AUTOPARTSOURCE | 572655 |
| AUTOXTRA | AX901418 |
| AUTOZONE | 74022, 74022DG, 74022DL |
| BRAKEBEST | 921712RGS, 981199, 981199R |
| Brembo | 09.E496.11 |
| CENTRIC | 120.40085, 121.40085, 126.40085SL, 126.40085SR, 127.40085R, 127.40085L, 128.40085L, 128.40085R, 320.40085 |
| Centric Parts | 120.40085, 121.40085, 126.40085SL, 126.40085SR, 127.40085L, 127.40085R, 128.40085L, 128.40085R, 320.40085 |
| DURA CORP | BR901418 |
| DuraGo | BR901418 |
| Dynamic Friction Company | 604-59038 |
| HONDA | 45251T5RA02 |
| MAGMA PRODUCTS | PSR263072 |
| NEWTEK AUTOMOTIVE | R1418 |
| Newtek Automotive USA | R1418 |
| POWERSTOP | JBR1714EVC |
| PROMAX | 14-610042 |
| Qualis | 44780 |
| TopNotch | TN981199GEO |
| UAP | R40085 |
| Ultra Brake | HO-5016 |
| WAGNER BRAKE | BD180708 |
| WORLDPAC | 1407-524403, 1427-712965 |
| Wagner Brake | BD180708E |
| Winhere | 6621712 |
RAYBESTOS 981199 Fits Vehicles
- Honda City (2015-2016)
- Honda Fit (2014-2020)
