CENTRIC 320.43004 Part Description
Manufacturer
Product Description

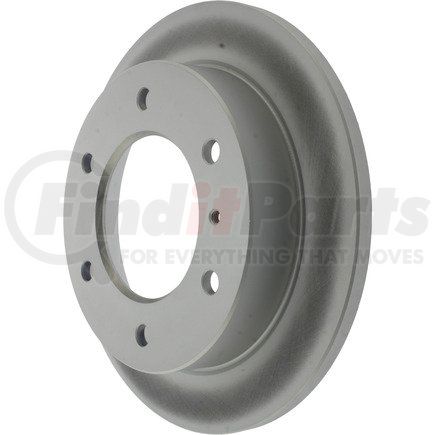

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.43004 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 9.500 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 4.320 |
| Misc Holes [cntrc] | 1 |
| Discard Thickness | 0.417 IN |
| Discard Thickness | 10.600 MM |
| Nominal Thickness | 0.472 IN |
| Nominal Thickness | 12.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 47.500 MM |
| Overall Height | 1.870 IN |
| Outside Diameter | 265.300 MM |
| Outside Diameter | 10.445 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 96.500 MM |
| Center Hole Diameter | 3.799 IN |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 12.400 MM |
| Stud/Lug Hole Diameter | 0.488 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590389272 |
CENTRIC 320.43004 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 96073R, 96073 |
CENTRIC 320.43004 Cross References
We have 2 alternatives for the 320.43004 by CENTRIC:
