(888) 312-8812 Login SignupCENTRIC 320.40032 Centric GCX Rotor with Partial Coating
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.40032 Part Description
Manufacturer
Product Description

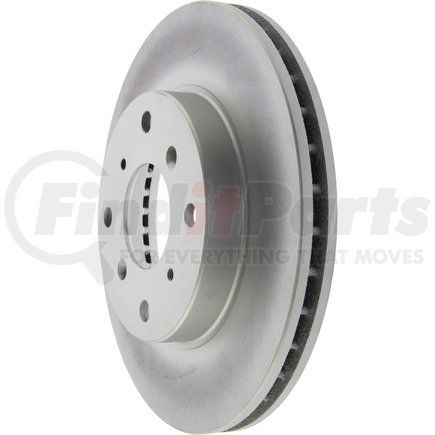

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.40032 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 4 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 12.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 5.450 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 0.827 IN |
| Discard Thickness | 21.000 MM |
| Nominal Thickness | 23.000 MM |
| Nominal Thickness | 0.906 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 47.200 MM |
| Overall Height | 1.858 IN |
| Outside Diameter | 10.236 IN |
| Outside Diameter | 260.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 64.100 MM |
| Center Hole Diameter | 2.524 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 12.750 MM |
| Stud/Lug Hole Diameter | 0.502 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590388718 |
CENTRIC 320.40032 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 96265R |
CENTRIC 320.40032 Cross References
We have 1 alternatives for the 320.40032 by CENTRIC:
