CENTRIC 320.44028 Part Description
Manufacturer
Product Description

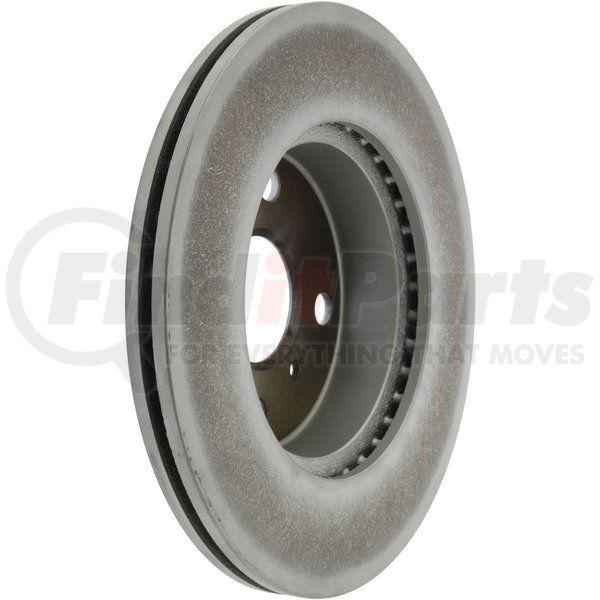

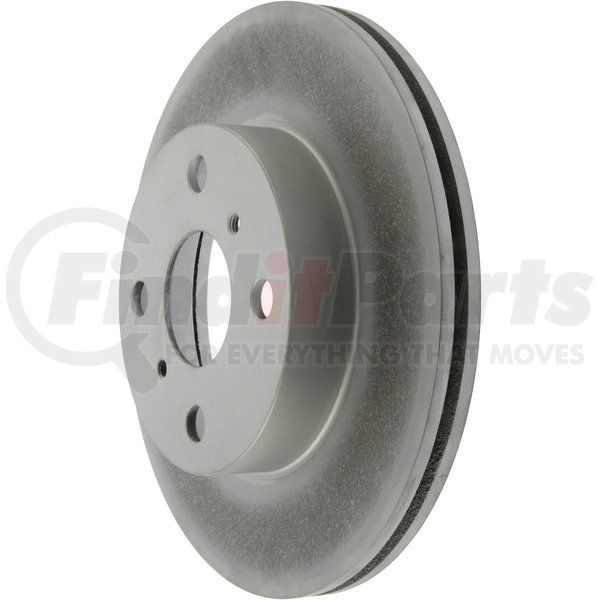

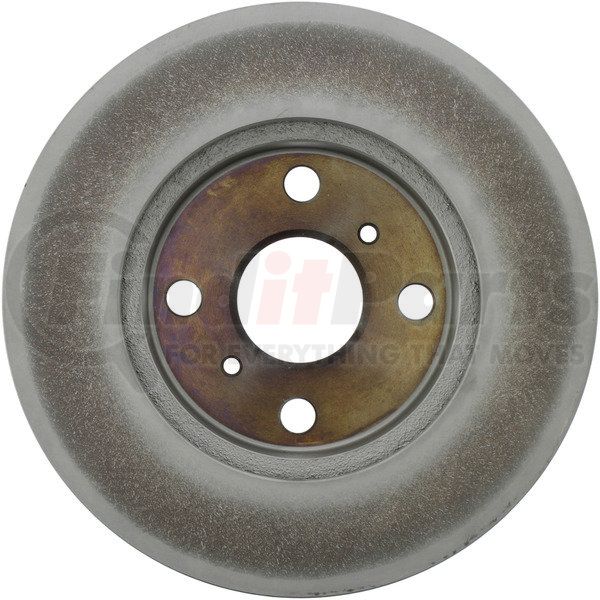

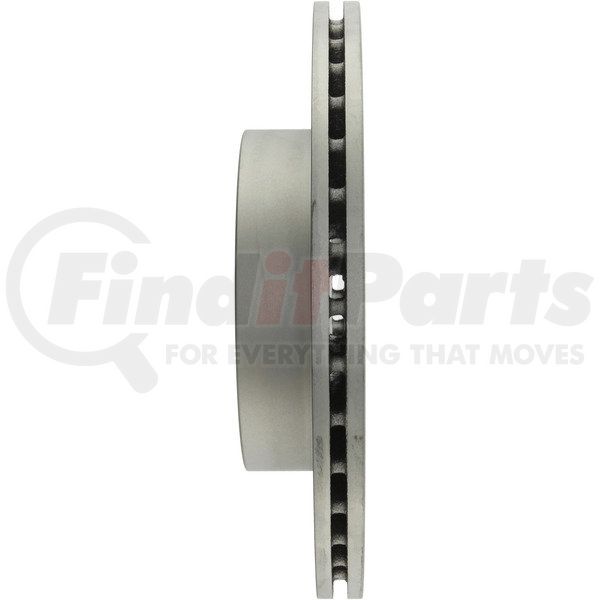

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.44028 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 2 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 9.500 |
| Weight [cntrc] Kgs | 4.320 |
| Discard Thickness | 0.669 IN |
| Discard Thickness | 17.000 MM |
| Nominal Thickness | 0.709 IN |
| Nominal Thickness | 18.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 47.000 MM |
| Overall Height | 1.850 IN |
| Outside Diameter | 243.000 MM |
| Outside Diameter | 9.567 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 54.000 MM |
| Center Hole Diameter | 2.126 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 14.500 MM |
| Stud/Lug Hole Diameter | 0.571 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590399851 |
CENTRIC 320.44028 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 96037R |
