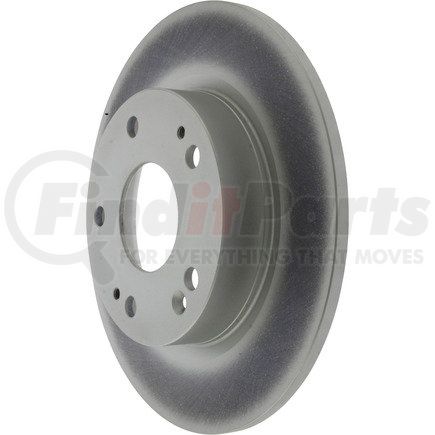

CENTRIC 320.40089 Part Description
Manufacturer
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.40089 Specifications
Product Attributes
| Hat Id [cntrc] Mm | 143.100 |
| Weight [cntrc] Kgs | 3.320 |
| Weight [cntrc] Lbs | 7.350 |
| Misc Holes [cntrc] | 3 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] In | 5.634 |
| Disc Mounting [cntrc] | Floating |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 8.000 MM |
| Discard Thickness | 0.315 IN |
| Nominal Thickness | 9.000 MM |
| Nominal Thickness | 0.354 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 39.300 MM |
| Overall Height | 1.547 IN |
| Outside Diameter | 260.000 MM |
| Outside Diameter | 10.236 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 2.524 IN |
| Center Hole Diameter | 64.100 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.700 MM |
| Stud/Lug Hole Diameter | 0.500 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590388879 |
CENTRIC 320.40089 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 982073, 982073FZN, 982073R |
CENTRIC 320.40089 Cross References
We have 3 alternatives for the 320.40089 by CENTRIC:
