DORMAN T409L Part Description
Manufacturer
Product Description

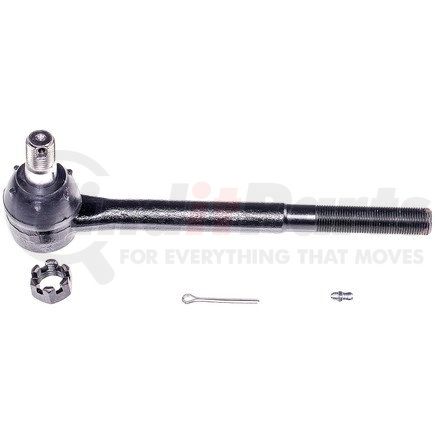

Steering Tie Rod End
Application Summary
Chevrolet 1995-71, GMC 1995-71
Features & Benefits
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Steering, Tie, Rod, End, Ties, Rods, Ends
DORMAN T409L Specifications
Product Attributes
| Length | 110 MM |
| Color | Negro |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Finish | Revestidos |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Si |
| Width | 37.8 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.688 IN |
| Height | 61 MM |
| Housing Material | Steel |
| Tube Diameter | 17.6 MM |
| Adjustable | Yes |
| Bearing Material | Polimero |
| End 1 Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| End 2 Thread Direction | Counterclockwise (Left) |
| Grade | Regular |
| Stud Type | Taper |
| End 2 Thread Pitch | 18 MM |
| End 1 Thread Pitch | 1.5 MM |
| Dust Boot Material | Polychloroprene |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 16 MM |
| Bolts Included | No |
| End 1 Attachment Type | Threaded |
| Material | Steel |
| Outside Diameter | 17.6 mm |
| Package Contents | 1 Tie Rod End |
| Thread Pitch | M1.25 |
| Weight | 1.73 lb |
| Outside Diameter | 17.6 mm MM |
| Thread Pitch | M1.25 mm |
| Grade Type | Standard |
| End 1 Thread Diameter | 16 mm MM |
| End 1 Thread Pitch | M1.5 mm |
| End 2 Thread Diameter | 11/16 in IN |
| End 2 Thread Pitch | M18 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00843295023398 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
DORMAN T409L Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45A0090, 46A0090A |
| ADVANTAGE | 46A0090A |
| C-Tek | 613.66012 |
| Centric Parts | 612.66012, 613.66012 |
| Delphi | TA2136 |
| General Motors | 14002550, 378344, 3986724, 31024669 |
| MEVOTECH | MES409LT |
| MOOG | ES409LT |
| MOOG Chassis Products | ES409LT |
| Mcquay-Norris | ES409L, ES409LGL |
| Mevotech Original Grade | GES409LT |
| Mevotech Supreme | MES409LT |
| QUICK STEER | ES409LT |
| QuickSteer | ES409LT |
| SKP | SES409LT |
| SUSPENSIA | X07TE0145 |
| SYD | ES-409-L, ES409L |
| Skyward Automotive Products LLC | SES409LT |
| TRW | JTE7045 |
| XRF | ES409LT |
| XRF Chassis | ES409LT |
DORMAN T409L Fits Vehicles
- Chevrolet C10 Pickup (1973-1974)
- Chevrolet G20 Van (1971-1974)
- Chevrolet P10 Van (1973-1974)
- Chevrolet R20 (1987-1988)
- Chevrolet C35 (1987)
- GMC G15/G1500 Van (1973-1974)
- GMC C2500 (1979-1986)
- GMC P15 (1975-1978)
- Chevrolet R30 (1987-1988)
- GMC G35/G3500 Van (1971-1974)
- GMC P35 (1975-1978)
- GMC R2500 (1987-1989)
- GMC C3500 (1979-1986)
- GMC C15/C1500 Suburban (1973-1974)
- Chevrolet R3500 (1989-1991)
- GMC R1500 (1987)
- Chevrolet R2500 (1989)
- GMC P25/P2500 Van (1971-1974)
- GMC P15/P1500 Van (1973-1974)
- GMC P1500 (1979-1980)
- GMC C15/C1500 Pickup (1973-1974)
- GMC G25 (1975-1978)
- GMC G35 (1975-1978)
- Chevrolet P10 (1975-1980)
- GMC C15 Suburban (1975-1978)
- Chevrolet R1500 Suburban (1989-1991)
- GMC R3500 (1987-1991)
- GMC Jimmy (1973-1982)
- GMC C35/C3500 Pickup (1971-1974)
- GMC P35/P3500 Van (1971-1974)
- GMC R2500 Suburban (1987-1991)
- Chevrolet C30 (1975-1986)
- Chevrolet Blazer (1973-1974)
- Chevrolet R10 Suburban (1987-1988)
- GMC C25 (1975-1978)
- Chevrolet G30 Van (1971-1974)
- Chevrolet C20 (1975-1987)
- Chevrolet R10 (1987)
- GMC R1500 Suburban (1987-1991)
- GMC C2500 Suburban (1979-1986)
- GMC G25/G2500 Van (1971-1974)
- Chevrolet P20 Van (1971-1974)
- Chevrolet G10 Van (1973-1974)
- GMC C25/C2500 Suburban (1971-1974)
- GMC C15 (1975-1978)
- Chevrolet R20 Suburban (1987-1988)
- GMC P3500 (1979-1995)
- Chevrolet P30 Van (1971-1974)
- Chevrolet C20 Suburban (1971-1986)
- GMC P2500 (1979-1989)
- GMC G3500 (1979-1995)
- GMC C25/C2500 Pickup (1971-1974)
- GMC G15 (1975-1978)
- Chevrolet C30 Pickup (1971-1974)
- GMC P25 (1975-1978)
- GMC C35 (1975-1978)
- Chevrolet G30 (1975-1995)
- Chevrolet K5 Blazer (1975-1982)
- Chevrolet P30 (1975-1995)
- GMC C1500 (1979-1986)
- Chevrolet R2500 Suburban (1989-1991)
- GMC G1500 (1979-1995)
- Chevrolet P20 (1975-1989)
- Chevrolet G20 (1975-1995)
- GMC C25 Suburban (1975-1978)
- Chevrolet C20 Pickup (1971-1974)
- GMC C1500 Suburban (1979-1986)
- GMC G2500 (1979-1995)
- Chevrolet C10 Suburban (1973-1986)
- Chevrolet C10 (1975-1986)
- Chevrolet G10 (1975-1995)
