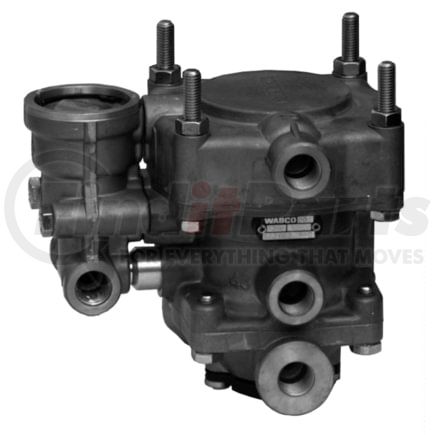

(888) 312-8812 Login SignupWABCO 9730025390 Air Brake Control Valve
MSRP: $2,442.50
$1,91699
Save $525.51
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
WABCO 9730025390 Part Description
WABCO 9730025390 Specifications
Product Attributes
| Weight | 4.9163 |
| Calculated Volume (dm³) | 3.6132 |
| Temperature Range | -40°C to +80°C |
| Switch Pressure | 2.5 bar |
| Mounting | 4x M8 |
| Predominance | 0.30 bar |
| Max. operating pressure | 8.0 bar |
| Distance between bolts | 85x85 mm |
| Size | 164 x 136 x 162 |
| Exhaust | Flap |
| Port thread 11 | M16 x 1.5 |
| Multi Nominal Diameter (From Port 1 To X) | 8.0 / 2.0 mm |
| Port Thread 41 | M16 x 1.5 |
| Port Thread 43 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Port Thread 42 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
WABCO 9730025390 Cross References
We have 1 alternatives for the 9730025390 by WABCO:
WABCO 9730025390 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 9730025390 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
