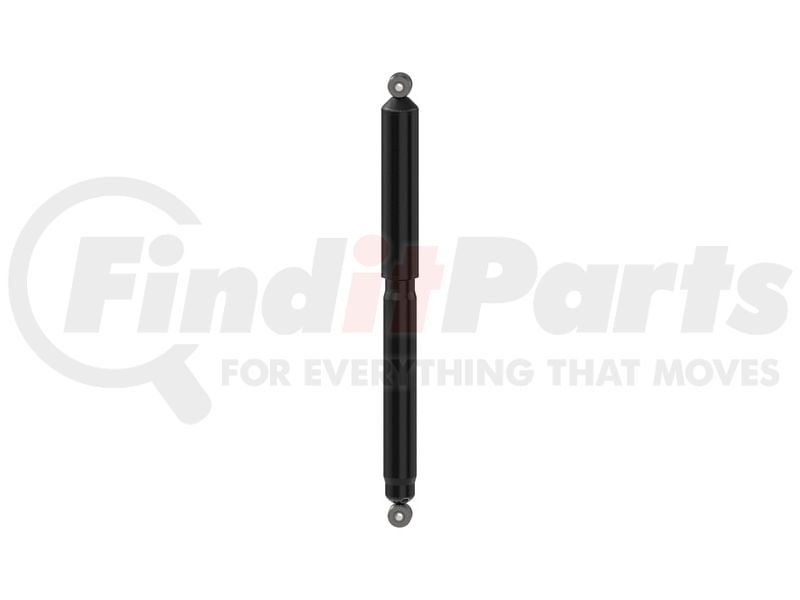

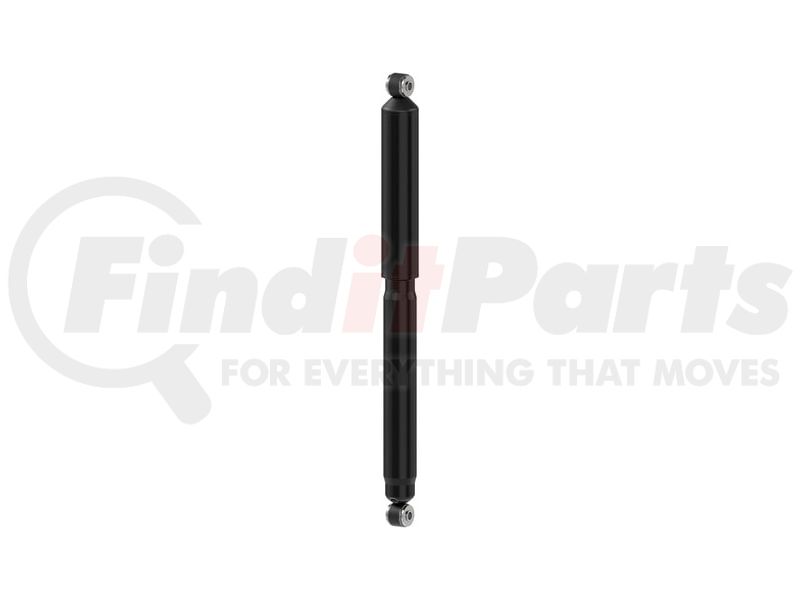

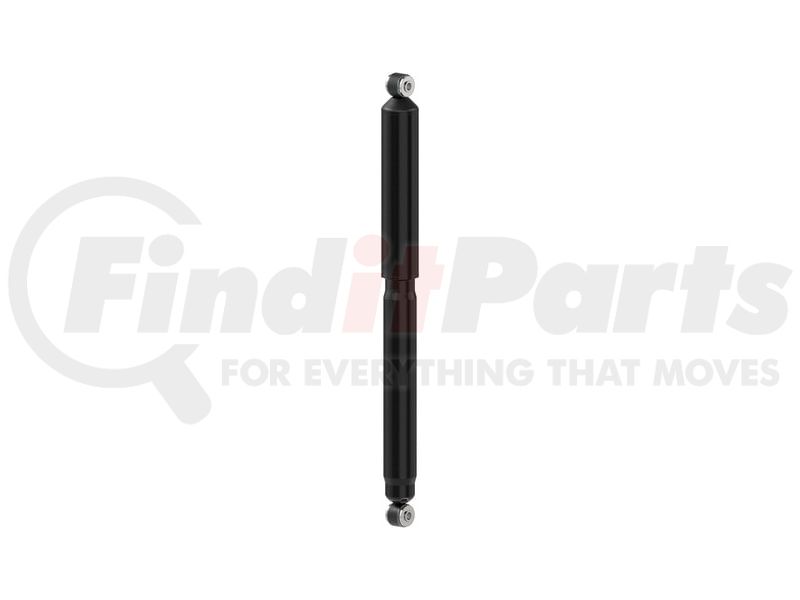

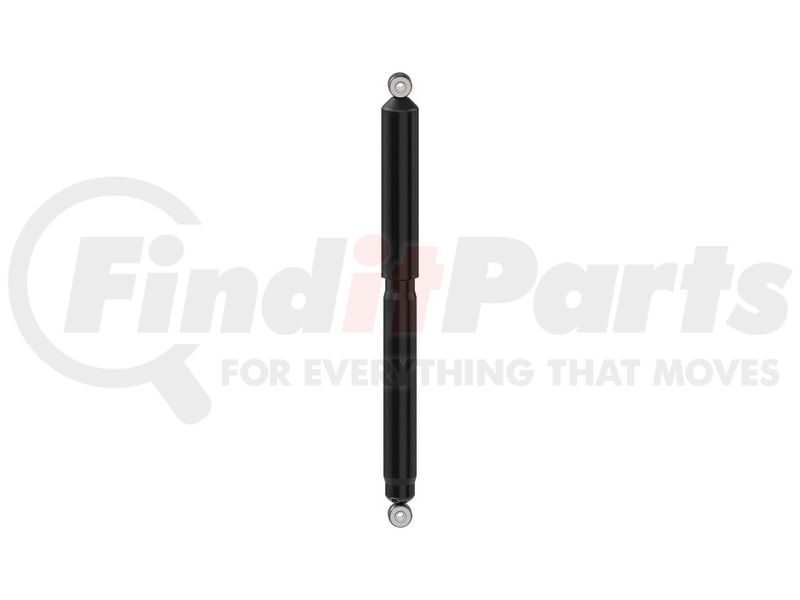

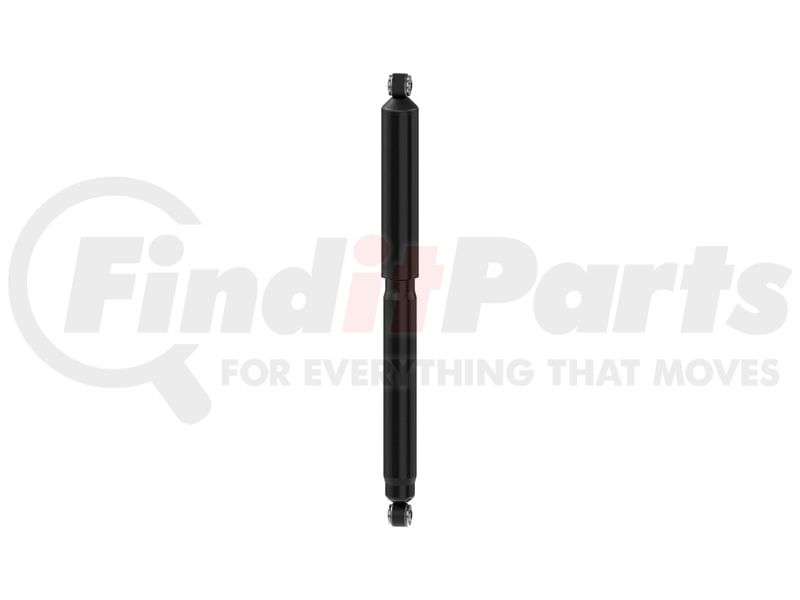

(888) 312-8812 Login SignupMONROE 550062 Magnum Severe Service Amortisseur
Tap to view 11 more
MSRP: $126.99
$8599
Save $41.00
Limited availability at this price!
In Stock
Get it by Wednesday, Sep 2
MONROE 550062 Part Description
Manufacturer
Features & Benefits
- Robust hydraulic lock-out: Prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly - on most applications
- PTFE coated bearing: Reduces friction during operation between the rod and rod guide, improving durability - on most applications
- Tenneco shouldered bushings: Shouldered bushing and bonded bushing with sleeve designs prevent (bushing walkout) for improved quality and durability - on most applications
- Nitrogen gas-charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration
- Loop welding technique: Provide up to 14,100 lbs. (6,395 kg) tensile strength for maximum durability
- 2-inch (50.8 mm) reserve tube: More fluid for more consistent performance - on most applications
- 1-3/8-inch (35 mm) bore: Larger bore than most shocks to provide more efficient and consistent control - on most applications
- 5/8-inch (16 mm) diameter piston rod: Nitrocarburized design more environmentally friendly, maintaining chrome structural benefits, without affecting durability. Sintered iron design allows for more precise piston dimensions.
- .05-inch pressure tube withstanding pressure of 9KPSI - On most applications
- 10-stage valving: Reacts to wide range of driving conditions - on most applications
MONROE 550062 Specifications
Product Attributes
| Compressed Length | 17.76 IN |
| Compressed Length | 451.1 MM |
| Extended Length | 29.44 in |
| Extended Length | 747.8 MM |
| Travel Length | 11.96 in |
| Travel Length | 303.8 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.9/16" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS27 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 39.69MM Sleeve OAL |
| Upper Mount Code | LS27 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Diameter | 2.251 IN |
| Body Diameter | 57.2 MM |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598223517 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 550062 Cross References
| Brand | Part Number |
|---|---|
| AL-KO Xtreme | 813000 |
| AutoZone | TS3432232B |
| Duralast | TS3432232B |
| FCS | DT342887, 342789 |
| Ford | 9L3Z18124BE, 9L3Z18124CE, 9L3Z18124DE, 9L3Z18124EE, 9L3Z18124FE, 9L3Z18124M, 9L3Z18125A, 9L3Z18125B, 9L3Z18125C, 9L3Z18125D, 9L3Z18125E, 9L3Z18125F, AL3Z18124A, AL3Z18124AA, AL3Z18124BA, AL3Z18124CA, AL3Z18124DA, AL3Z18124EA, AL3Z18124FA, AL3Z18124GA, AL3Z18124RB, AL3Z18124SB, AL3Z18124TA, AL3Z18125D, AL3Z18125E, AL3Z18125G, AL3Z18125H, AL3Z18125K, AL3Z18125L, BL3Z18124C, BL3Z18124F, BL3Z18124H, BL3Z18124J, BL3Z18125C, BL3Z18125F, BL3Z18125H, BL3Z18125J, BL3Z18125K, BL3Z18125L, CL3Z18124A, CL3Z18124B |
| Gabriel | G64079 |
| KYB | 349108, 554373, 5650006 |
| NAPA Shocks | 550062, 911302, 94379 |
| PRT | 173932 |
| Rancho | RS5384, RS55384 |
| Sachs | 316580 |
| Sensen | 12140169 |
| Top Quality | 78911302 |
MONROE 550062 Fits Vehicles
- Ford F-150 (2009-2013)
