StopTech 127.45083L - StopTech Sport Drilled & Slotted Brake Rotor; Rear Left
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
STOPTECH part description
Product Description

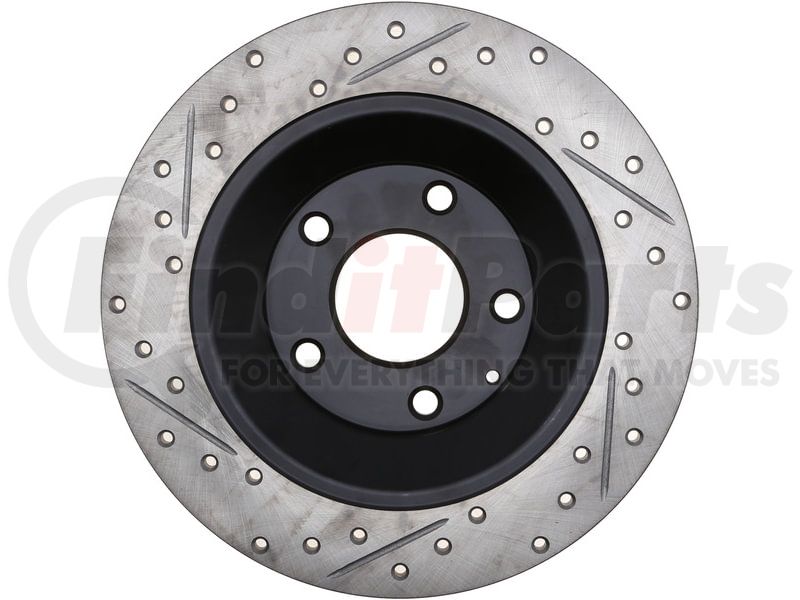

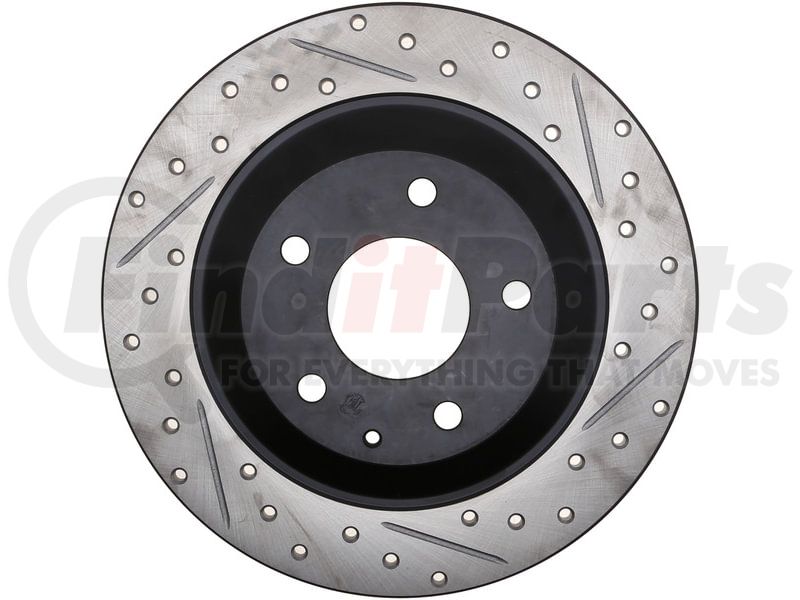

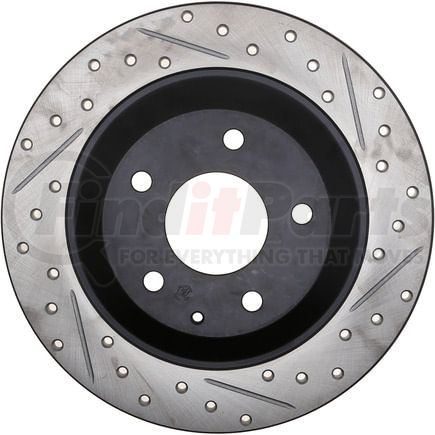

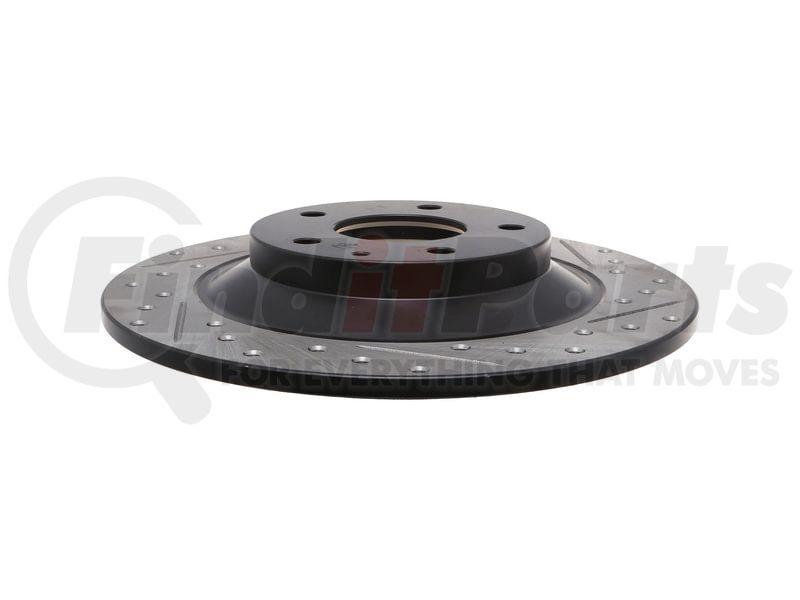

StopTech Sport Drilled & Slotted Brake Rotor; Rear Left
Application Summary
2013 - 2018 Mazda CX-5
Features & Benefits
- Premium e-coated rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Drilled & Slotted for increased bite; improved looks and better performance
Sport Drilled Rotor; StopTech; StopTech Rotor; Stop Tech Rotor; Stop-Tech Sport Rotor; StopTech Sport Rotor; StopTech Brake Rotor; Stoptech Drilled/Slotted Rotor
Product Attributes
| Discard Thickness | 8.000 MM |
| Nominal Thickness | 0.394 IN |
| Hat Finish | Coated |
| Overall Height | 39.600 MM |
| Outside Diameter | 302.400 MM |
| ABS Tone Ring Included | No |
| Surface Type | Slotted X Drilled |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 68.000 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.512 IN |
| California Proposition 65 Text [basic] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Hat Id [cntrc] In | 5.571 |
| Hat Id [cntrc] Mm | 141.500 |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Kgs | 4.520 |
| Weight [cntrc] Lbs | 9.950 |
| Nominal Thickness | 10.000 MM |
| Stud/Lug Hole Diameter | 13.000 MM |
| Disc Mounting | Floating |
| Hat Inside Diameter | 5.571 |
| Misc Holes | 1 |
| Weight | 9.950 |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Outside Diameter | 11.906 IN |
| Center Hole Diameter | 2.677 IN |
| Overall Height | 1.559 IN |
| Discard Thickness | 0.315 IN |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890486640 |
Fits Vehicles
- Mazda CX-5 (2013-2023)
