STOPTECH 126.62086CSR Part Description
Manufacturer
Product Description

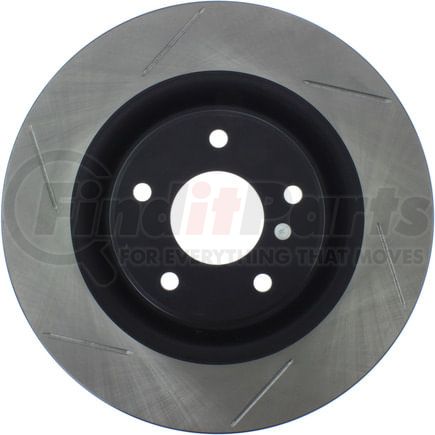

StopTech Sport Slotted Cryo Brake Rotor; Front Right
Application Summary
2006 - 2009 Cadillac XLR, 2005 - 2013 Chevrolet Corvette
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and service life
Sport Rotor; StopTech; StopTech Rotor; Stop Tech Rotor; Stop-Tech Sport Rotor; StopTech Sport Rotor; StopTech Brake Rotor
STOPTECH 126.62086CSR Specifications
Product Attributes
| Discard Thickness | 30.000 MM |
| Nominal Thickness | 1.260 IN |
| Hat Finish | Coated |
| Overall Height | 1.795 IN |
| Outside Diameter | 340.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Slotted |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 70.700 MM |
| Mounting Bolt Hole Circle Diameter | 4.752 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.528 IN |
| California Proposition 65 Text [basic] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 10.230 |
| Weight [cntrc] Lbs | 22.500 |
| Disc Mounting | Floating |
| Misc Holes | 0 |
| Weight | 22.500 |
| Center Hole Diameter | 2.783 IN |
| Discard Thickness | 1.181 IN |
| Nominal Thickness | 32.000 MM |
| Stud/Lug Hole Diameter | 13.400 MM |
| Mounting Bolt Hole Circle Diameter | 120.700 MM |
| Overall Height | 45.600 MM |
| Outside Diameter | 13.386 IN |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00822903702252 |
STOPTECH 126.62086CSR Fits Vehicles
- Cadillac XLR (2006-2009)
- Chevrolet Corvette (2005-2013)
