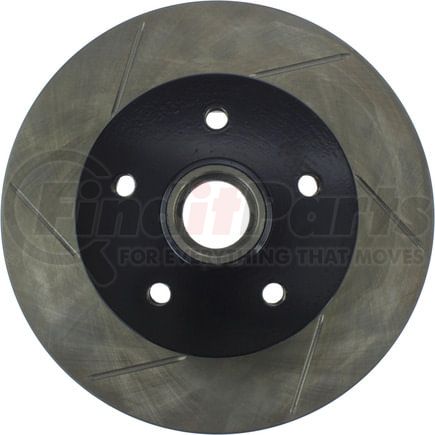

(888) 312-8812 Login SignupSTOPTECH 126.33010CSR Sport Slotted Cryo Brake Rotor, Front Right
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
STOPTECH 126.33010CSR Part Description
Manufacturer
Product Description
Sport Slotted Cryo Brake Rotor, Front Right
Application Summary
1979 - 1979 Volkswagen Transporter, 1980 - 1985 Volkswagen Vanagon
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and service life
Sport Rotor; StopTech; StopTech Rotor; Stop Tech Rotor; Stop-Tech Sport Rotor; StopTech Sport Rotor; StopTech Brake Rotor
STOPTECH 126.33010CSR Specifications
Product Attributes
| Discard Thickness | 0.433 IN |
| Discard Thickness | 11.000 MM |
| Nominal Thickness | 0.508 IN |
| Nominal Thickness | 12.900 MM |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.550 IN |
| Stud Thread Diameter | 14.000 MM |
| Outside Diameter | 10.945 IN |
| Outside Diameter | 278.000 MM |
| Height | 4.673 IN |
| Height | 118.700 MM |
| ABS Tone Ring Included | No |
| Surface Type | Slotted |
| Solid Or Vented Type Rotor | Solid |
| Bolt Thread Pitch | 1.50 MM |
| Center Hole Diameter | 2.362 IN |
| Center Hole Diameter | 60.00 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112.00 MM |
| Mounting Bolt Hole Diameter | 14.00 MM |
| Stud/Lug Hole Quantity | 5 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Bearing # [cntrc] | 415.9 |
| Inner Race # [cntrc] | 416.9 |
| Inner Seal # [cntrc] | 417.900 |
| Misc Holes [cntrc] | 5 |
| Outer Bearing # [cntrc] | 410.91002 |
| Weight [cntrc] | 8.950 KG |
| Weight [cntrc] | 19.700 LB |
| Disc Mounting | Hub & Rotor |
| Inner Bearing | 415.9 |
| Inner Race | 416.9 |
| Inner Seal | 417.900 |
| Misc Holes | 5 |
| Outer Bearing | 410.91002 |
| Weight | 8.950 KG |
| Weight | 19.700 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00822903455677 |
