Centric 406.63011 - Centric Premium Hub and Bearing Assembly; With ABS
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

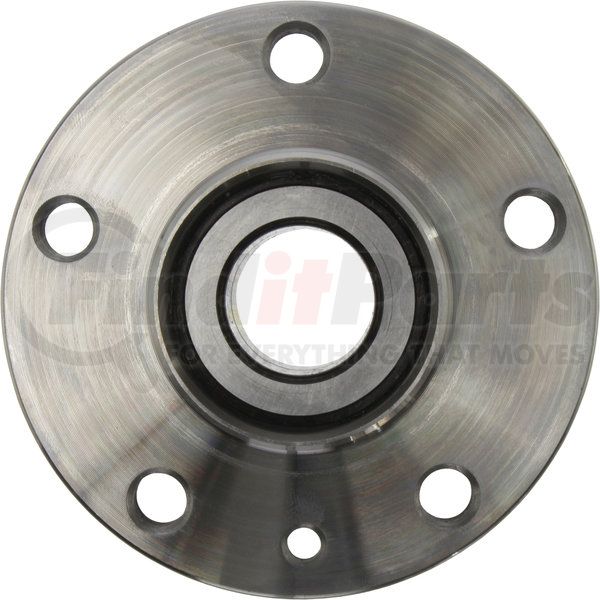

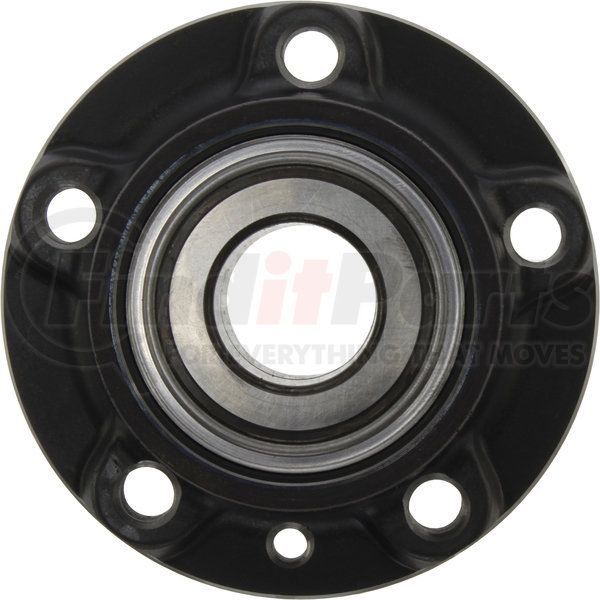

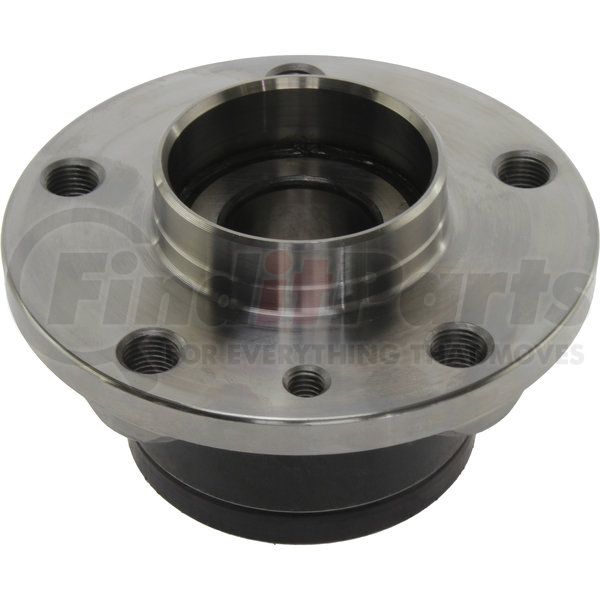

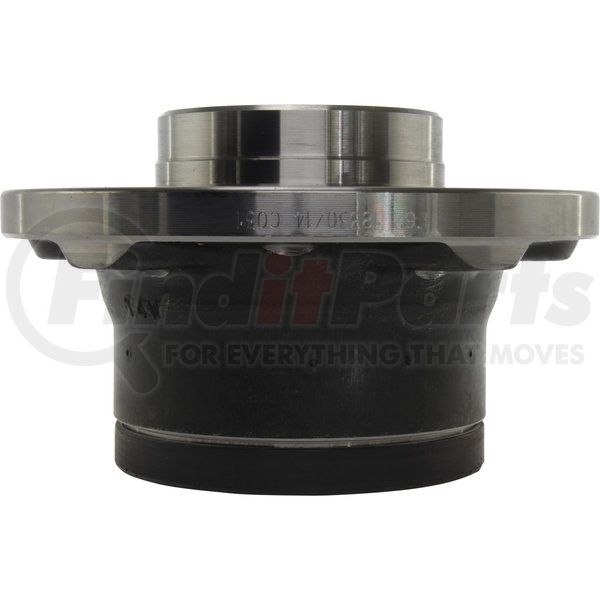

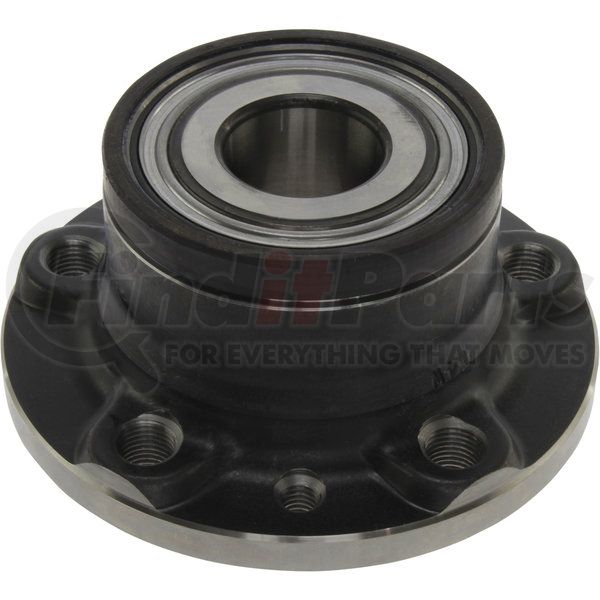

Centric Premium Hub and Bearing Assembly; With ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Inner Diameter [cntrc] Mm | 30.000 |
| Product Grade [cntrc] | Premium |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.250 |
| Inner Diameter [cntrc] In | 1.141 |
| Notes [cntrc] | Retaining Holes 1xM8-1.25; Magnetic ABS Encoder |
| Bolt Circle Diameter [cntrc] Mm | 98.000 |
| Bolt Circle Diameter [cntrc] In | 3.858 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 57.960 MM |
| Wheel Pilot Diameter | 2.282 IN |
| Brake Pilot Diameter | 58.950 MM |
| Brake Pilot Diameter | 2.321 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 4.716 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 889590161465 |
Part Interchanges
Fits Vehicles
- Ram ProMaster City (2015-2022)
