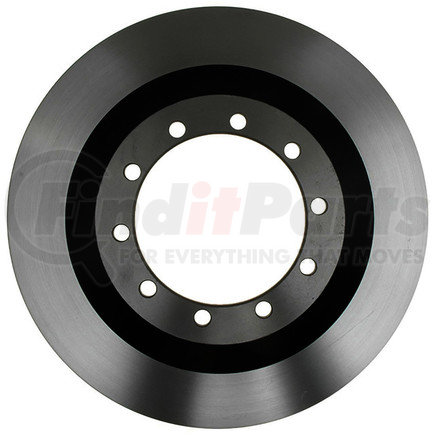

ACDelco 18A956AC - Coated Disc Brake Rotor
$12399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
ACDELCO part description
Product Description
Front Brake Rotor
Product Attributes
| Nominal Thickness | 1.5 IN |
| Disc Finish | Coated |
| Height (in) | 4.9 in |
| Center Bore Diameter (in) | 5.5in |
| Bolt Circle Diameter (in) | 6.43 in |
| Bolt Hole Quantity | 10 |
| Outside Diameter | 394.95 MM |
| Outside Diameter | 15.55 IN |
| Nominal Thickness | 38.1 MM |
| Height (mm) | 124.5 mm |
| Center Bore Diameter (mm) | 139.7mm |
| Bolt Circle Diameter (mm) | 163.3 mm |
| ABS Tone Ring Included | No |
| Discard Thickness | 36 MM |
| Product Description | ACDelco Advantage Coated Disc Brake Rotors provide reliable vehicle braking power. Their robotic-applied, baked-on coating helps prevent brake pulsation, helps prevent the rotor from seizing to the hub, and provides superior rust prevention against harsh environmental elements such as rain, snow, and corrosive road sprays. They feature a non-directional ground finish that helps to extend brake pad life and minimizes thickness variation. They are also ready to be installed right out of the box, with no machining required. These dependable aftermarket Advantage Coated Disc Brake Rotors offer quality at an economical price. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Material | Cast Iron |
| FAQ - Question 1 | Does ACDelco offer other grades of brake rotors? |
| Construction | Full Cast |
| Features & Benefits - Bullet 1 | Manufactured with multiple alloys for improved heat dissipation and performance |
| Features & Benefits - Bullet 2 | Mill-balanced for proper rotor function; no extra weights needed |
| Slotted | No |
| Programming Required | No |
| Discard Thickness | 1.417 IN |
| Hat Finish | Plain |
| Features & Benefits - Bullet 3 | Quality validated for proper metallurgy and correct brake plate thickness |
| Grade Type | Regular |
| Features & Benefits - Bullet 4 | Rounded radius for added strength |
| Surface Type | Smooth |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 4 | Vehicle pulls to the left or right when brakes are applied. |
| Overall Height | 4.87 IN |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 5 | Visible ridges or deep grooves on the rotor surface. |
| Rust Resistant Coating | Yes |
| FAQ - Answer 1 | Yes, ACDelco also offers GM OE brake rotors and Professional brake rotors. |
| Mounting Bolt Hole Circle Diameter | 6.417 IN |
| Mounting Bolt Hole Circle Diameter | 163 MM |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Diameter | 0.511 IN |
| Mounting Bolt Hole Quantity | 10 |
| Center Hole Diameter | 139.45 MM |
| Center Hole Diameter | 5.49 IN |
| Overall Height | 123.7 MM |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Stud/Lug Hole Quantity | 10 |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Solid Or Vented Type Rotor | Vented |
Additional Information
| Warranty Special | 12 Months/Unlimited Miles Warranty (Parts Only). Please see ACDelco.com for more details|24 Months/40,000 Kilometers (Parts Only). Please see ACDelcocanada.com for more details |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Country of Origin (Primary) | CN |
| Warranty Special UOM | TX |
| UPC | 00808709342649 |
Fits Vehicles
- Ford E-550 Econoline Super Duty (2002)
- Ford E-550 Super Duty (2003)
- Ford F-550 Super Duty (1999-2004)
- Ford F-450 Super Duty (1999-2004)
- Ford F-59 Commercial Stripped Chassis (2011-2020)
- Ford F-53 Motorhome Chassis (1999-2004, 2006-2009, 2011-2020)
- Winnebago Suncruiser (2016)
- Itasca Suncruiser (2013-2016)
- Holiday Rambler Vacationer (2015)
- Winnebago Sightseer (2013-2017)
- Fleetwood Flair LXE (2017-2019)
- Forest River Georgetown GT3 (2020)
- Fleetwood Fortis (2020)
- Forest River FR3 (2020)
- Winnebago Adventurer (2013-2017, 2019-2020)
- Itasca Sunstar (2013-2016)
- Forest River Georgetown GT5 (2020)
- Winnebago Vista (2013-2020)
- Fleetwood Southwind (2014-2020)
- Fleetwood Flair (2015-2020)
- Itasca Sunstar LX (2016)
- Fleetwood Bounder (2010-2020)
- Winnebago Sunstar LX (2016)
- Fleetwood Bounder Classic (2010-2015)
- Winnebago Vista LX (2016-2017)
A true OEM auto parts brand for GM and non-GM vehicles, ACDelco® offers a wide portfolio of parts designed to keep vehicles on the road longer. These parts work precisely and fit perfectly because they are designed, engineered, tested, and backed by General Motors. But ACDelco also carries aftermarket components that go through the same 18-step quality approval process as the OE parts. Whether customers choose OE or aftermarket, they’d get the same reliable performance, precise engineering, and superior reliability for years to come. ACDelco’s expansive product portfolio includes alternators, filters, batteries, brakes, belts and hoses, oil and fluids, and suspension parts. These products are made to meet GM and non-GM vehicles’ ever-evolving powertrain, collision, maintenance, and repair needs.
