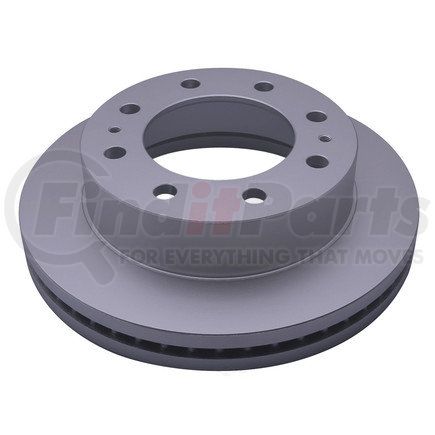

ACDelco 18A1193AC - Coated Front Disc Brake Rotor
$11249
In stock
limited availability at this price!
. Learn more
ACDELCO part description
Product Description
Front Brake Rotor
Product Attributes
| Mounting Bolt Hole Circle Diameter | 6.5 IN |
| Discard Thickness | 1.437 IN |
| Height (in) | 3.5 in |
| Center Bore Diameter (in) | 4.7in |
| Bolt Circle Diameter (in) | 6.5 in |
| Bolt Hole Quantity | 8 |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Width (in) | 13.3 in |
| Length (In) | 14 IN |
| Weight | 30.8 lb |
| Discard Thickness | 36.5 MM |
| Center Hole Diameter | 118.1 MM |
| Height (mm) | 88.9 mm |
| Center Bore Diameter (mm) | 119.4mm |
| Bolt Circle Diameter (mm) | 165.1 mm |
| Overall Height | 3.51 IN |
| Mounting Bolt Hole Circle Diameter | 165.1 MM |
| Product Description | ACDelco Advantage Coated Disc Brake Rotors provide reliable vehicle braking power. Their robotic-applied, baked-on coating helps prevent brake pulsation, helps prevent the rotor from seizing to the hub, and provides superior rust prevention against harsh environmental elements such as rain, snow, and corrosive road sprays. They feature a non-directional ground finish that helps to extend brake pad life and minimizes thickness variation. They are also ready to be installed right out of the box, with no machining required. These dependable aftermarket Advantage Coated Disc Brake Rotors offer quality at an economical price. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Material | Cast Iron |
| FAQ - Question 1 | Does ACDelco offer other grades of brake rotors? |
| Construction | Full Cast |
| Features & Benefits - Bullet 1 | Manufactured with multiple alloys for improved heat dissipation and performance |
| Features & Benefits - Bullet 2 | Mill-balanced for proper rotor function; no extra weights needed |
| Slotted | No |
| Programming Required | No |
| Disc Finish | Non Directional |
| Hat Finish | Plain |
| Features & Benefits - Bullet 3 | Quality validated for proper metallurgy and correct brake plate thickness |
| Grade Type | Regular |
| Features & Benefits - Bullet 4 | Rounded radius for added strength |
| Surface Type | Smooth |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 4 | Vehicle pulls to the left or right when brakes are applied. |
| Solid Or Vented Type Rotor | Vented |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 5 | Visible ridges or deep grooves on the rotor surface. |
| Rust Resistant Coating | Yes |
| FAQ - Answer 1 | Yes, ACDelco also offers GM OE brake rotors and Professional brake rotors. |
| Mounting Bolt Hole Diameter | 0.635 IN |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.5 IN |
| Nominal Thickness | 38.1 MM |
| Outside Diameter | 12.795 IN |
| Outside Diameter | 325 MM |
| Center Hole Diameter | 4.65 IN |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Stud/Lug Hole Quantity | 8 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Overall Height | 89.15 MM |
| ABS Tone Ring Included | No |
Additional Information
| Warranty Special | 12 Months/Unlimited Miles Limited Warranty (Parts Only). Please see ACDelco.com for more details|12 Months/20,000 Kilometers Limited Warranty (Parts Only). Please see ACDelcocanada.com for more details |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Country of Origin (Primary) | CN |
| Warranty Special UOM | TX |
| UPC | 00808709338871 |
Fits Vehicles
- GMC Sierra 3500 HD (2007-2010)
- Chevrolet Silverado 3500 HD (2007-2010)
- GMC Sierra 3500 Classic (2007)
- GMC Savana 3500 (2003-2024)
- GMC Sierra 3500 (2001-2006)
- Chevrolet Silverado 3500 Classic (2007)
- Chevrolet Express 4500 (2009-2022)
- Chevrolet Silverado 3500 (2001-2007)
- Chevrolet Express 3500 (2003-2024)
- GMC Savana 4500 (2009-2023)
A true OEM auto parts brand for GM and non-GM vehicles, ACDelco® offers a wide portfolio of parts designed to keep vehicles on the road longer. These parts work precisely and fit perfectly because they are designed, engineered, tested, and backed by General Motors. But ACDelco also carries aftermarket components that go through the same 18-step quality approval process as the OE parts. Whether customers choose OE or aftermarket, they’d get the same reliable performance, precise engineering, and superior reliability for years to come. ACDelco’s expansive product portfolio includes alternators, filters, batteries, brakes, belts and hoses, oil and fluids, and suspension parts. These products are made to meet GM and non-GM vehicles’ ever-evolving powertrain, collision, maintenance, and repair needs.
