(888) 312-8812 Login SignupBALDWIN PF46091 Fuel Water Separator Filter - used for International, Kenworth, Peterbilt, Volvo
MSRP: $115.38
$4249
Save $72.89
Limited availability at this price!
In Stock
Get it by Tuesday, Jun 23

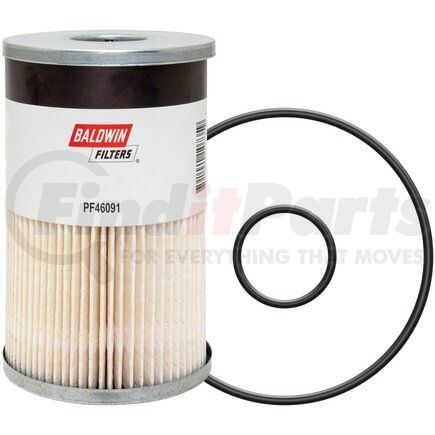

BALDWIN PF46091 Part Description
Manufacturer
Product Description
Fuel/Water Separator Element
Application Summary
International, Kenworth, Peterbilt, Volvo Trucks with Cummins ISX Engines
Features & Benefits
- Internal separation chamber diverts moisture from injector feed pathways
- 16.7 mm inside diameter matches the specified heavy-duty fuel head sizing
- Minimizes corrosion risk within high-pressure diesel injection systems
- Lessens the transfer of tank condensation into downstream fuel components
Fuel/Water Separator Element
Baldwin Fuel Water Separator Filter
The Baldwin Fuel Water Separator Filter manages moisture intrusion in diesel systems used across International, Kenworth, Peterbilt, and Volvo trucks. Condensation can develop inside fuel tanks when vehicles transition between temperature extremes, introducing water into the supply line before combustion. This separator routes diesel through an internal chamber that allows water to collect separately from the fuel stream before it reaches the injection components. An inside diameter of 16.7 mm aligns with the designated mounting heads found in compatible fuel filtration assemblies. Removing water at this stage reduces corrosion exposure within pumps and injectors, and the Baldwin PF46091 fits into approved fuel head configurations without requiring modification.
BALDWIN PF46091 Specifications
Product Attributes
| Remark 2 | One End |
| Outside Diameter 1 | 4 7/32 |
| Inside Diameter 1 (mm) | 16.7 |
| Height (mm) | 178.6 |
| Fits | International, Kenworth, Peterbilt, Volvo Trucks with Cummins ISX Engines |
| Outside Diameter 1 (mm) | 107.2 |
| Inside Diameter 1 | 21/32 |
| Replaces | Fleetguard FS19764G |
| Height | 7 1/32 |
| O-Ring | [2] Included |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| UPC | 00791440107359 |
BALDWIN PF46091 Cross References
| Brand | Part Number |
|---|---|
| BALDWIN FILTERS | PF46091 |
| CARQUEST | 96691 |
| FLEETGUARD | FS19764G |
| GRAINGER | 493X26 |
| LUBER-FINER | L9763FXL |
| NAPA GOLD | 33964 |
| WIX | 3964 |
| WIX FILTERS | WIX FILTERS, 33964 |
BALDWIN PF46091 Fits Vehicles
- Peterbilt 367 (2021)
- Kenworth T880 (2021)
- Volvo VNL 860 (2019-2020)
- International HX520 (2020-2022)
- Peterbilt 365 (2019)
- Kenworth W900 (2019-2021, 2023)
- Mack Pinnacle (2021)
- International HX620 (2020-2022)
- Mack Anthem (2021)
- Volvo VNL 300 (2020)
- Volvo VNL 740 (2019-2020)
- Volvo VNR (2020-2021)
- International LT625 (2017-2024)
- Volvo VNL 760 (2019-2020)
- Kenworth T800 (2020-2021)
- Kenworth W990 (2020-2021)
- International LoneStar (2019-2020)
- Volvo VNL (2019-2021)
- Peterbilt 389 (2019-2023)
- Peterbilt 567 (2019-2020)
- International ProStar (2008-2017)
BALDWIN PF46091 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN PF46091 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
