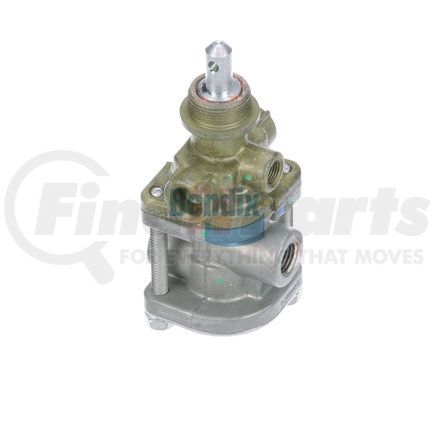

(888) 312-8812 Login SignupBENDIX 288239R PP-7™ Trailer Brake Supply Valve - Remanufactured
Tap to view 6 more
$11849
7 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
BENDIX 288239R Part Description
Manufacturer
Product Description
Supply Valve
Features & Benefits
- A highly reliable dash panel-mounted, push-pull operated control valve at a competitive price
- Operates in conjunction with the park control valve
- Helps synchronize the tractor and trailer emergency and parking brakes
- A combination of two non-modulating, on-off control valves in a single, compact package
- Consists of four pipe tapped ports, which are identified with cast-in, raised letters
- Has 1/8 inch N.P.T.F. dry seal pipe threads in control and supply ports and 1/4 inch N.P.T.F. dry seal pipe threads in exhaust and delivery ports
- Built to withstand harsh operating conditions
- All Bendix valves are designed to improve vehicle performance and safety
Courtesy of Bendix – All rights reserved
Bendix PP-7 Trailer Brake Supply Valve
The Bendix PP-7 trailer brake supply valve is designed to provide in cab control for the tractor protection system. Because of this crucial function, Bendix engineers this product following stringent remanufacturing processes to ensure maximum efficiency and performance.
BENDIX 288239R Specifications
Product Attributes
| Mounting Hardware Included | No |
| Mounting Hole Diameter | 7/8-20 in. UNEF-2A |
| Control Port Diameter | 1/8-27 in. NPT |
| Delivery Port Diameter | 1/4-18 in. NPT |
| Exhaust Port Diameter | Open |
| Maximum Operating Temperature | 200 °F (93 °C) |
| Minimum Operating Temperature | -40 °F (-40 °C) |
| New Or Remanufactured | Remanufactured |
| Notes | Plunger/Button Height: 1.14 in.; Plunger Diameter: 0.374 in. |
| Release Pressure | 40 PSI |
| Series | PP-7™ |
| Supply Port Diameter | 1/8-27 in. NPT |
| Trailer Override Pressure | 26 ± 6 PSI |
Additional Information
| Core Class | 36 |
| Core Group | 16 |
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8481200070 |
| VMRS Code | 013010406 |
BENDIX 288239R Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 288239RX |
BENDIX 288239R Manufacturer Information
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
