HORTON part description
Product Description

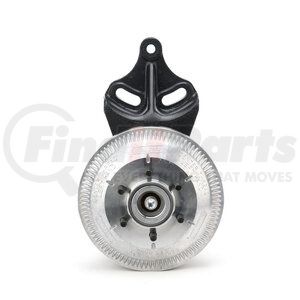

RCV250 Fully-Variable Fan Drive
Application Summary
MACK, VOLVO
Viscous fan drive, engine cooling system, fully variable
Product Attributes
| BACK PULLEY DIAMETER | 6.69 IN |
| BELT CONFIGURATION | 12K |
| Belt Groove Location | 1.48 IN |
| Center of JB To Top Right Mounting Hole | 4.39 IN |
| Connector Type | TYCO 987650-1 |
| Fan Bolt Circle | 10.11 IN |
| FAN PILOT DIAMETER | 9.29 IN |
| Heavy Duty | TRUE |
| HORIZONTAL MOUNTING DISTANCE | 6.73 IN |
| MTG STUD LENGTH | 1.2 IN |
| Overall Length | 6.15 IN |
| Stud Thread Size | M8 X 1.25 IN |
| VERTICAL MOUNTING DISTANCE | 7.21 IN |
| Voltage | 12V |
| Wire Length | 25.04 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8505200000 |
| Harmonized Tariff Code (HTS) | 8505200000 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 9810244 |
| Warranty Distance | 200000 |
| Warranty Distance UOM | DH |
| Warranty Special | 2500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| VMRS Code | 042003036 |
Part Interchanges
HORTON 9910244 Cross Reference
Behr 21251047, Borgwarner 22208781, Borgwarner 21210851, Borgwarner 21192242, Mack 43MH59M, Mack 43MH515M, Mack 22113073, Mack 21925091, Mack 85147375, Volvo 21788110, Volvo 20874680, Volvo 21251047, Volvo 85115603, Volvo 22113073, Volvo 85147375
