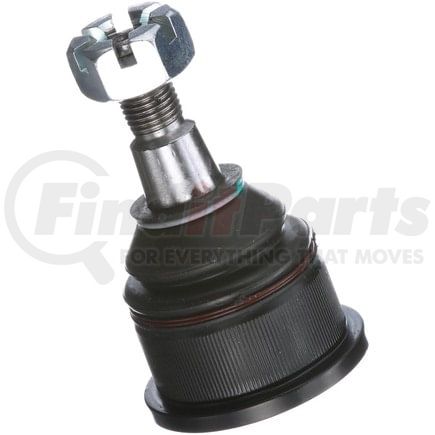

(888) 312-8812 Login SignupDELPHI TC5127 Ball Joint
Tap to view 5 more
$4399
Limited availability at this price!
In Stock
Get it by Monday, Jul 27
DELPHI TC5127 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5127 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Color | Gray |
| Stud Thread Diameter | 0.55 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 55.90 MM |
| Type | Threaded |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 4.50 IN |
| Height | 114.50 MM |
| Nuts Included | No |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.18 IN |
| Stud Thread Length | 30.00 MM |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Stud Thread Pitch | 1.5 MM |
| Length | 55.90 MM |
| Length | 2.20 IN |
| Maximum Outside Diameter | 55.90 MM |
| Thread Direction | Clockwise (Right) |
| Pre-Greased | Yes |
| Outside Diameter | 55.90 MM |
| Bearing Type | Plastic |
| Boot Color | Black |
| Wrench Size | 10mm MM |
| Stud Type | Threaded |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 20.50 MM |
| Retaining Ring Included | Yes |
| Maximum Outside Diameter | 2.20 IN |
| Width | 2.20 IN |
| Outside Diameter | 2.20 IN |
| Stud Tapered End 2 Diameter | 0.80 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604289815 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5127 Cross References
| Brand | Part Number |
|---|---|
| Chrysler | 5069161AA, 5069161AB, 5114037AC, 5114037AD, 5114037AE, 5114037AH, 5114037AJ |
| DORMAN | B3199, B3199XL |
| MAS Industries | B3199, B3199XL |
| MEVOTECH | MK3199, MK80767 |
| MOOG | K3199 |
| MOOG Chassis Products | K80767 |
| N/A | 5114037AB, 05114037AI, MK3199, MK80767, GK3199, GS30867, BJ86095, BJ96095, K3199, 611.58003 |
| TRW | JBJ834, JBJ968 |
DELPHI TC5127 Fits Vehicles
- Jeep Liberty (2002-2007)
