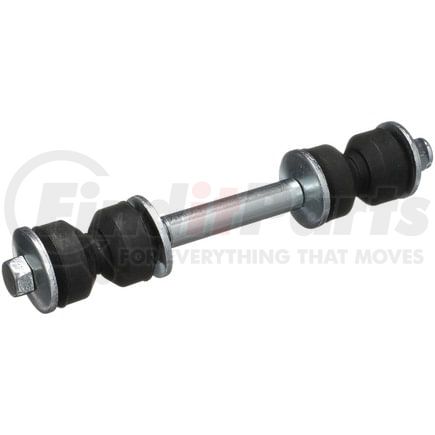

Delphi TC5051 - Suspension Stabilizer Bar Link Kit
$549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Suspension Stabilizer Bar Link Kit
Product Attributes
| Position(s) | Front |
| Item Grade | Standard Replacement |
| Bushing Outside Diameter | 1.22 IN |
| Bushing Outside Diameter | 31.0 MM |
| Bushing Color | Black |
| Length | 7.441 IN |
| End 1 Type | Bushing |
| End 2 Type | Bushing |
| Pre-Greased | No |
| Bushings Included | Yes |
| Dust Boot Included | No |
| Grease Fittings Included | No |
| Sleeve Length | 2.402 IN |
| Sleeve Length | 61.0 MM |
| Bolt Thread Size | 3/8'' |
| Sleeve Diameter | 0.512 IN |
| Sleeve Diameter | 13.0 MM |
| Center Bolt Head Size | 14 |
| Washers Included | Yes |
| Grade Type | Regular |
| Bolts Included | Yes |
| Greaseable | No |
| Bearing Material | Natural Rubber (NR) |
| Bushing Material | Natural Rubber (NR) |
| Bolt Length | 189.0 MM |
| Bolt Thread Diameter | 0.375 IN |
| Bolt Thread Pitch | 1.058 MM |
| Locking Nuts Included | Yes |
| Bushing Inside Diameter | 0.394 IN |
| Bushing Inside Diameter | 10.0 MM |
| Length | 189.00 MM |
| Bolt Length | 7.44 IN |
| Bolt Thread Diameter | 9.52 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604286531 |
| VMRS Code | 016004023 |
| UNSPSC | 25172001 |
Part Interchanges
Fits Vehicles
- Buick Sportwagon (1965)
- Buick Special (1965)
- Chevrolet 1500 (1954)
- Cadillac Series 62 (1955-1956)
- Cadillac Series 75 Fleetwood (1955-1956)
- Chevrolet DJ (1946)
- Chevrolet Sedan Delivery (1949-1957)
- Pontiac Super Chief (1957)
- Pontiac Star Chief (1954-1957)
- Pontiac Firebird (1967-1969)
- Pontiac Chieftain (1953-1957)
- Oldsmobile Jetfire (1962-1963)
- Oldsmobile F85 (1961-1963)
- Lincoln Mark III (1968-1969)
- Lincoln Continental (1963-1969)
- Ford Thunderbird (1961-1970)
- Chevrolet Two-Ten Series (1953-1957)
- Chevrolet Styleline Special (1949-1952)
- Chevrolet Stylemaster Series (1946-1948)
- Chevrolet Styleline Deluxe (1949-1952)
- Chevrolet One-Fifty Series (1953-1957)
- Chevrolet Fleetmaster (1946-1948)
- Chevrolet Chevy II (1962-1967)
- Chevrolet Camaro (1967-1969)
- Chevrolet Bel Air (1950-1957)
- Cadillac Series 60 Fleetwood (1955-1956)
- Cadillac Eldorado (1955-1956)
- Cadillac DeVille (1955-1956)
- Buick Wildcat (1965-1970)
- Buick Skylark (1962-1963)
- Buick Riviera (1966-1970)
- Buick Estate Wagon (1970)
- Buick LeSabre (1965-1970)
- Buick Gran Sport (1965-1966)
- Buick Electra (1965-1970)
- Pontiac T1000 (1981-1987)
- Chevrolet LUV (1975-1980)
- Chevrolet Chevette (1976-1987)
- Isuzu I-Mark (1981-1985)
- Isuzu Impulse (1983-1989)
