(888) 312-8812 Login SignupDELPHI TA5338 Tie Rod End
Tap to view 5 more
$3849
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
DELPHI TA5338 Part Description
Manufacturer
Product Description

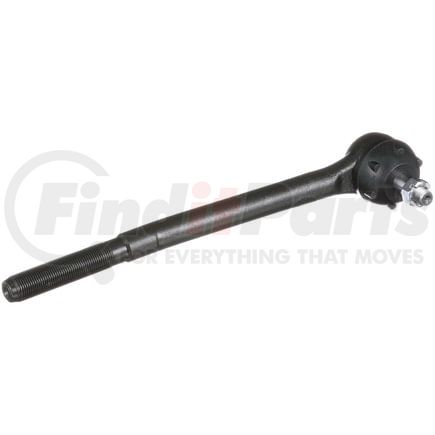

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5338 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 290.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 43 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.437 IN |
| End 2 Thread Diameter | 11.11 MM |
| Height | 85.80 MM |
| Housing Material | Steel |
| Tube Diameter | 0.748 IN |
| Tube Diameter | 19.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.59 lb |
| Cone Outside Diameter | 14.20 MM |
| Bearing Material | Plastic |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| Length - Stud Center to End | 10.492 IN |
| Length - Stud Center to End | 266.50 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 20 |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 0.687 IN |
| End 1 Thread Diameter | 17.46 MM |
| Shank Length | 14.20 MM |
| Stud Length | 14.20 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.559 IN |
| Stud Length | 0.559 IN |
| Cone Outside Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604290446 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA5338 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | T364RL, T364RLPR |
| Ford | C7OZ 3A130A |
| MEVOTECH | MS40758 |
| MOOG Chassis Products | ES363RL |
| N/A | ES364RL, MES364RL, GES364RL, C7ZZ3A131A |
| TRW | JTE1419 |
DELPHI TA5338 Fits Vehicles
- Mercury Montego (1968-1969)
- Mercury Cyclone (1967-1969)
- Mercury Comet (1967-1969)
- Ford Torino (1968-1969)
- Ford Ranchero (1967-1969)
- Ford Falcon (1967-1970)
- Ford Fairlane (1967-1969)
