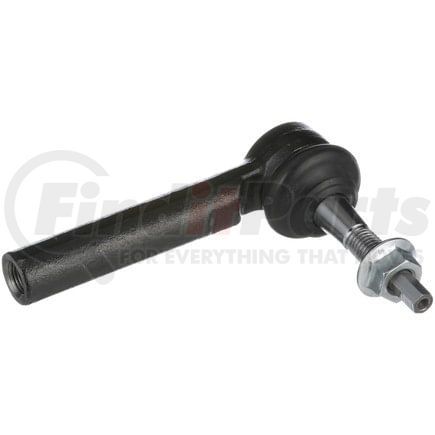

Delphi TA5317 - Tie Rod End
$5049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 164.00 MM |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Width | 43 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.630 IN |
| End 2 Thread Diameter | 16.00 MM |
| Height | 123.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.984 IN |
| Tube Diameter | 25.00 MM |
| Adjustable | No |
| Weight | 1.56 lb |
| Cone Outside Diameter | 19.20 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 5.551 IN |
| Length - Stud Center to End | 141.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.551 IN |
| Shank Length | 19.20 MM |
| Stud Length | 19.20 MM |
| Grade Type | Standard |
| Grade | Premium |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 0.756 IN |
| Stud Length | 0.756 IN |
| Cone Outside Diameter | 0.756 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604289020 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Chevrolet Silverado 1500 LD (2019)
- GMC Sierra 1500 Limited (2019)
- GMC Yukon XL (2015-2020)
- Chevrolet Suburban (2015-2020)
- Cadillac Escalade ESV (2015-2020)
- Cadillac Escalade (2015-2020)
- Chevrolet Tahoe (2015-2020)
- GMC Yukon (2015-2020)
- Chevrolet Silverado 1500 (2014-2018)
- GMC Sierra 1500 (2014-2018)
