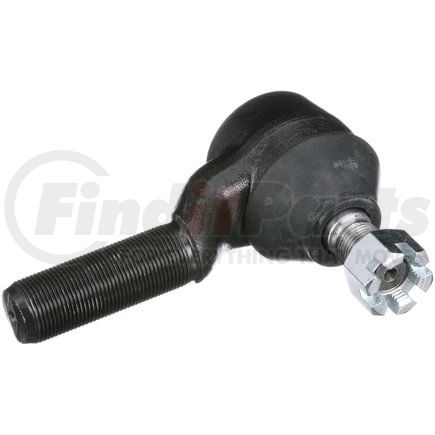

Delphi TA5315 - Tie Rod End
$5249
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Length | 140.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 51 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.875 IN |
| End 2 Thread Diameter | 22.23 MM |
| Height | 97.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.875 IN |
| Tube Diameter | 22.23 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.87 lb |
| Cone Outside Diameter | 19.70 MM |
| Bearing Material | Steel |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| Length - Stud Center to End | 4.449 IN |
| Length - Stud Center to End | 113.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 0.625 IN |
| End 1 Thread Diameter | 15.88 MM |
| Shank Length | 19.70 MM |
| Stud Length | 19.70 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.776 IN |
| Stud Length | 0.776 IN |
| Cone Outside Diameter | 0.776 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604289013 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- GMC K25/K2500 Pickup (1973-1974)
- Chevrolet K20 Pickup (1973-1974)
- Chevrolet K10 Pickup (1973-1974)
- Chevrolet Blazer (1973-1974)
- GMC K25 Suburban (1975-1976)
- GMC K25 (1975-1976)
- GMC K15 Suburban (1975-1976)
- GMC K15 (1975-1976)
- GMC Jimmy (1975-1976)
- Chevrolet K20 Suburban (1973-1976)
- Chevrolet K20 (1975-1976)
- Chevrolet K10 Suburban (1973-1976)
- Chevrolet K10 (1975-1976)
- Chevrolet K5 Blazer (1975-1976)
