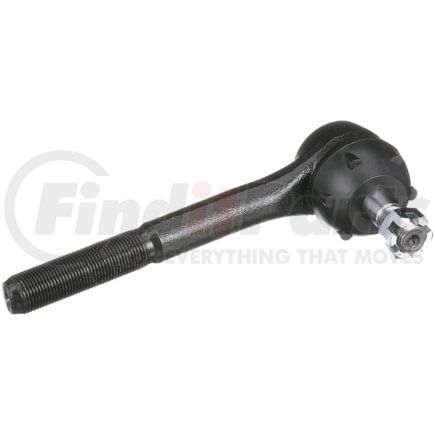

DELPHI TA5311 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5311 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 185.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 43 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.687 IN |
| End 2 Thread Diameter | 17.46 MM |
| Height | 92.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.748 IN |
| Tube Diameter | 19.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.13 lb |
| Cone Outside Diameter | 15.90 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| Length - Stud Center to End | 6.378 IN |
| Length - Stud Center to End | 162.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 20 |
| End 1 Thread Diameter | 0.500 IN |
| End 1 Thread Diameter | 12.70 MM |
| Shank Length | 15.90 MM |
| Stud Length | 15.90 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.626 IN |
| Stud Length | 0.626 IN |
| Cone Outside Diameter | 0.626 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604290286 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5311 Cross References
DELPHI TA5311 Fits Vehicles
- GMC P15/P1500 Van (1971-1972)
- GMC Jimmy (1971-1972)
- GMC G15/G1500 Van (1971-1972)
- GMC C15/C1500 Suburban (1971-1972)
- GMC C15/C1500 Pickup (1971-1972)
- Chevrolet P10 Van (1971-1972)
- Chevrolet G10 Van (1971-1972)
- Chevrolet C10 Suburban (1971-1972)
- Chevrolet C10 Pickup (1971-1972)
- Chevrolet Blazer (1971-1972)
