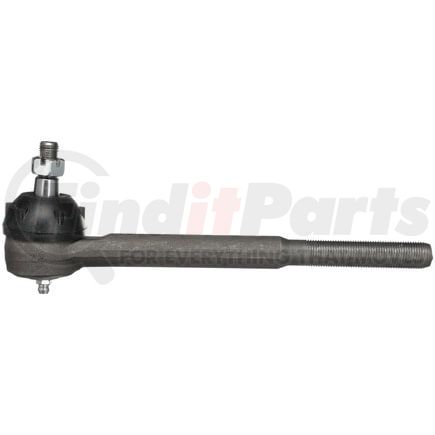

Delphi TA5214 - Tie Rod End
$2099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 240.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 43 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.625 IN |
| End 2 Thread Diameter | 15.88 MM |
| Height | 113.50 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Tube Diameter | 0.988 IN |
| Tube Diameter | 25.10 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.2 lb |
| Cone Outside Diameter | 15.90 MM |
| Bearing Material | Plastic |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| Length - Stud Center to End | 8.583 IN |
| Length - Stud Center to End | 218.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 20 |
| End 1 Thread Diameter | 0.437 IN |
| End 1 Thread Diameter | 11.11 MM |
| Shank Length | 15.90 MM |
| Stud Length | 15.90 MM |
| Grade | Premium |
| Shank Length | 0.626 IN |
| Stud Length | 0.626 IN |
| Cone Outside Diameter | 0.626 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604287026 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Buick Special (1964-1969)
- Buick Sportwagon (1964-1970)
- Pontiac Tempest (1964-1970)
- Oldsmobile Cutlass Supreme (1967-1970)
- Pontiac Ventura (1972)
- Pontiac LeMans (1964-1970)
- Pontiac GTO (1964-1970)
- Pontiac Grand Prix (1969-1970)
- Pontiac Firebird (1967-1968)
- Oldsmobile Omega (1973-1974)
- Oldsmobile F85 (1964-1970)
- Oldsmobile Cutlass (1964-1970)
- Oldsmobile 442 (1965-1970)
- GMC G25/G2500 Van (1971-1972)
- GMC G15/G1500 Van (1971-1972)
- Chevrolet Nova (1970-1974)
- Chevrolet Monte Carlo (1970)
- Chevrolet Malibu (1964-1967)
- Chevrolet G20 Van (1971-1972)
- Chevrolet G10 Van (1971-1972)
- Chevrolet El Camino (1964-1970)
- Chevrolet Chevy II (1968)
- Chevrolet Chevelle (1964-1970)
- Chevrolet Camaro (1967-1969)
- Buick Skylark (1964-1970)
- Buick Gran Sport (1965-1966)
- Buick Apollo (1973-1974)
- Pontiac Sunbird (1976-1980)
- Pontiac Astre (1975-1977)
- Oldsmobile Starfire (1975-1980)
- Chevrolet Vega (1971-1977)
- Chevrolet Monza (1975-1980)
- Buick Skyhawk (1975-1980)
