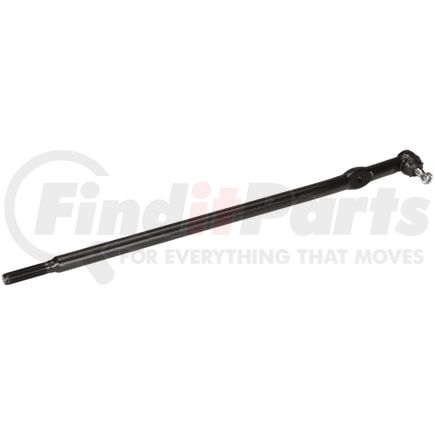

Delphi TA5192 - Tie Rod End
$7299
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Right Inner |
| Item Grade | Standard Replacement |
| Length | 876.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 58 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.866 IN |
| End 2 Thread Diameter | 22.00 MM |
| Height | 122.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Tube Diameter | 1.181 IN |
| Tube Diameter | 30.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 10.47 lb |
| Cone Outside Diameter | 18.30 MM |
| Bearing Material | Plastic |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 33.583 IN |
| Length - Stud Center to End | 853.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 18.30 MM |
| Stud Length | 18.30 MM |
| Grade | Premium |
| Shank Length | 0.720 IN |
| Stud Length | 0.720 IN |
| Cone Outside Diameter | 0.720 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604288030 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Ford F-350 (1980-1985)
- Ford F-250 (1980-1985)
