(888) 312-8812 Login SignupDELPHI TA5081 Tie Rod End
Tap to view 1 more
$1849
Limited availability at this price!
In Stock
Get as soon as Friday, Sep 25
DELPHI TA5081 Part Description
Manufacturer
Product Description

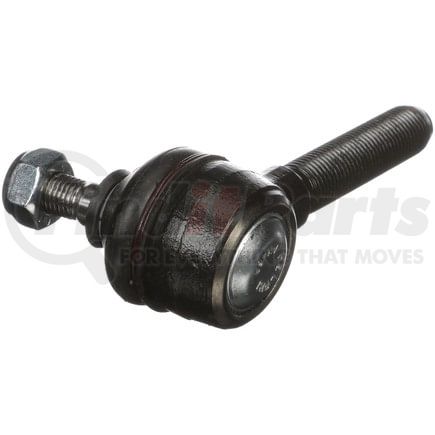

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5081 Specifications
Product Attributes
| Position(s) | Left Inner, Left Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Length | 110.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 37 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 66.20 MM |
| Housing Material | Steel |
| Tube Diameter | 0.551 IN |
| Tube Diameter | 14.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.73 lb |
| Cone Outside Diameter | 12.40 MM |
| Bearing Material | Plastic |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.583 IN |
| Length - Stud Center to End | 91.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.394 IN |
| End 1 Thread Diameter | 10.00 MM |
| Shank Length | 12.40 MM |
| Stud Length | 12.40 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.488 IN |
| Stud Length | 0.488 IN |
| Cone Outside Diameter | 0.488 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604283004 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA5081 Cross References
DELPHI TA5081 Fits Vehicles
- Volkswagen Transporter (1961-1966)
- Volkswagen Squareback (1966-1967)
- Volkswagen Karmann Ghia (1956-1967)
- Volkswagen Fastback (1966-1967)
- Volkswagen Beetle (1954-1968)
DELPHI TA5081 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TA5081 Questions & Answers
No questions yet
Be the first to ask a question about this product!
