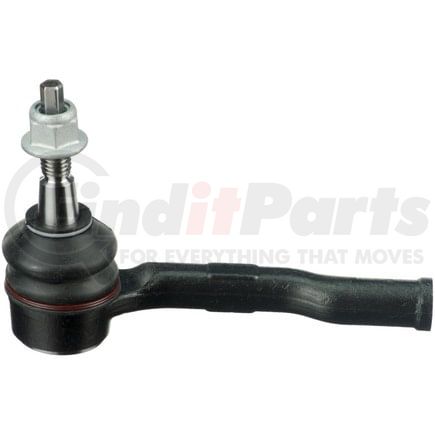

DELPHI TA3249 - Steering Tie Rod End - LH, Outer, Adjustable, Steel
$2249
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
DELPHI part description
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including Ethylene Thiourea, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Tie Rod End
Product Attributes
Position(s) | Left Outer |
Item Grade | Standard Replacement |
Color | Black |
End 1 Gender | Female |
End 2 Gender | Male |
Pre-Greased | Yes |
Grease Fitting Included | No |
Dust Boot Included | Yes |
Width | 44.0 MM |
Type | Bent |
End 2 Thread Diameter | 0.472 IN |
End 2 Thread Diameter | 12.0 MM |
Height | 109.0 MM |
Grade Type | Standard |
Housing Material | High Strength Steel |
Adjustable | Yes |
Weight | 1.21 lb |
Cone Outside Diameter | 18.0 MM |
Bearing Material | Polyoxymethilen (POM) |
End 1 Thread Direction | Clockwise (Right) |
End 2 Thread Direction | Clockwise (Right) |
Grade | Standard |
Stud Type | Threaded |
End 2 Thread Pitch | 1.75 MM |
Length Stud Center to End | 5.63 IN |
Length Stud Center to End | 143.0 MM |
Dust Boot Material | Choloroprene Rubber (CR) |
Tie Rod Material | Steel |
End 1 Thread Diameter | 0.551 IN |
End 1 Thread Diameter | 14.0 MM |
Additional Information
Harmonized Tariff Code (Schedule B) | 8708998175 |
Country of Origin (Primary) | TR |
Harmonized Tariff Code (HTS) | 8708998180 |
Warranty Special | Limited Lifetime |
Warranty Special UOM | LF |
UPC | 00689604284827 |
VMRS Code | 015004020 |
UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Chevrolet Cruze (2016-2019)
- Chevrolet Volt (2016-2019)
