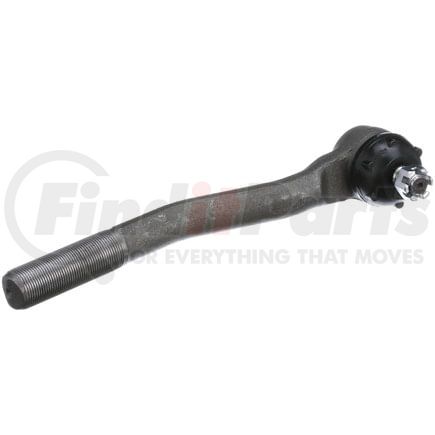

(888) 312-8812 Login SignupDELPHI TA2803 Tie Rod End
Tap to view 8 more
$3149
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
DELPHI TA2803 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA2803 Specifications
Product Attributes
| Position(s) | At Pitman Arm |
| Item Grade | Standard Replacement |
| Length | 162.00 MM |
| Color | Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 45 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.500 IN |
| Height | 73.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 2.52 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Counterclockwise (Left) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 240.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 20 |
| End 1 Thread Diameter | 24.00 MM |
| End 2 Thread Diameter | 12.70 MM |
| Grade Type | Standard Replacement |
| Locking Nut Included | Yes |
| Length - Stud Center to End | 9.449 IN |
| End 1 Thread Diameter | 0.945 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604296820 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA2803 Cross References
DELPHI TA2803 Fits Vehicles
- Jeep Grand Cherokee (1999-2004)
