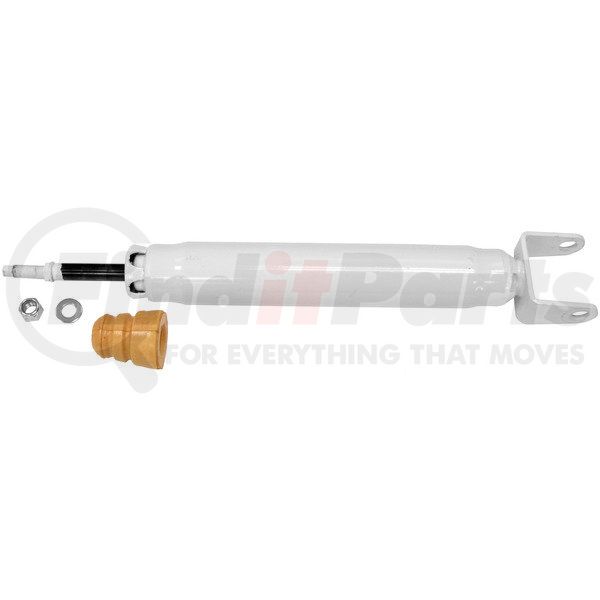

Rancho RS55399 - RS5000X Suspension Shock Absorber
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
RANCHO part description
Product Description
RS5000X Suspension Shock Absorber
Features & Benefits
- IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Product Attributes
| Compressed Length | 16.05 IN |
| Travel Length | 7.31 in |
| Finish | Painted |
| Grade Type | Performance |
| Extended Length | 23.36 in |
| Lower Mount Type | Clevis Bracket Mount |
| Upper Mount Type | Stem Mount - Stem Length X M12 Thread Pitch |
| Gas Charged | Yes |
| Adjustable Damping | No |
| Dust Shield Included | No |
| 9789 | S2 |
| 9791 | CLEV |
| 9801 | 35 MM |
| Part Description | Shock Absorber |
| Parts Pack(s) | P00762 |
| Compressed Length | 407.7 MM |
| Extended Length | 593.3 MM |
| Travel Length | 185.7 MM |
| Shock Stroke | 7.31 IN |
| Shock Stroke | 185.7 MM |
| Lower Mount Type | Clevis Bracket Mount |
| Lower Mount Code | CLEV |
| Upper Mount Type | Stem Mount - Stem Length X M12 Thread Pitch |
| Upper Mount Code | S2 |
| Shock Absorber Rod End Measuring Point | Center of Mounting Hole |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Mounting Hardware Included | Yes |
| 9908 | No |
| Body Diameter | 2.25 IN |
| Body Diameter | 57.2 MM |
| Cylinder Outside Diameter | 2.25 IN |
| Cylinder Outside Diameter | 57.2 MM |
| Body Material | Steel |
| Cylinder Material | Steel |
| Body Color | White |
| Cylinder Color | White |
| Color | White |
| 10531 | Painted |
| Boot Included | No |
| 1183 | 0.622 IN |
| 1183 | 15.8 MM |
| Shaft Material | Nitrocarburized |
| Shock Absorber Bore Size | 1.3779527559055118 IN |
| 9783 | No |
| Internal Rebound Spring | Yes |
| 9792 | No |
| Type | Telescopic |
| 10530 | Passive |
| 10527 | No |
| Adjustable Rebound | No |
| 10526 | Progressive |
| 10529 | No |
| 10528 | No |
| 10534 | 0 IN |
| 10535 | 0 IN |
| Air Adjustable | No |
| Air Ride Suspension | No |
| 9615 | No |
| 9620 | No |
| 9618 | No |
| New Or Remanufactured | New |
| Coil Over Springs Included | No |
| Bearing Plate Included | No |
| Spring Included | No |
| 9621 | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| 9476 | No |
| 9619 | No |
| Adjustable Damping | No |
| Internal Construction Type | Twin Tube |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703009881 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
Part Interchanges
- Rancho RS5399
- Gabriel G511000
- Monroe Shocks & Struts 911304
- KYB 3440054
- KYB 345626
- Chrysler 68069671AC
- Chrysler 68069671AE
- Chrysler 68069676AD
- Chrysler 68069677AC
- Chrysler 68069846AF
- Chrysler 68069846AH
- Chrysler 68084522AB
- Chrysler 68084522AC
- Chrysler 68139502AB
- Chrysler 68139503AB
- Chrysler 68298927AA
- Chrysler 68299126AA
- Sensen 32140221
- Unity Automotive 256500
- FCS 346409
Fits Vehicles
- Dodge Durango (2011-2023)
- Jeep Grand Cherokee (2011-2022)
