HORTON part description

Product Description

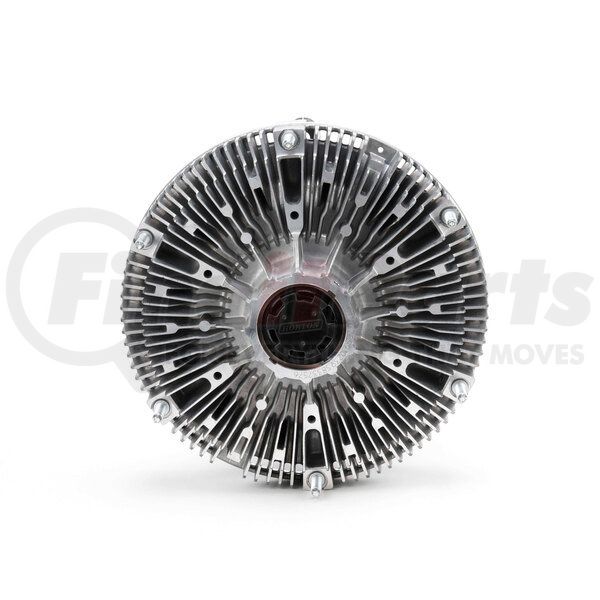

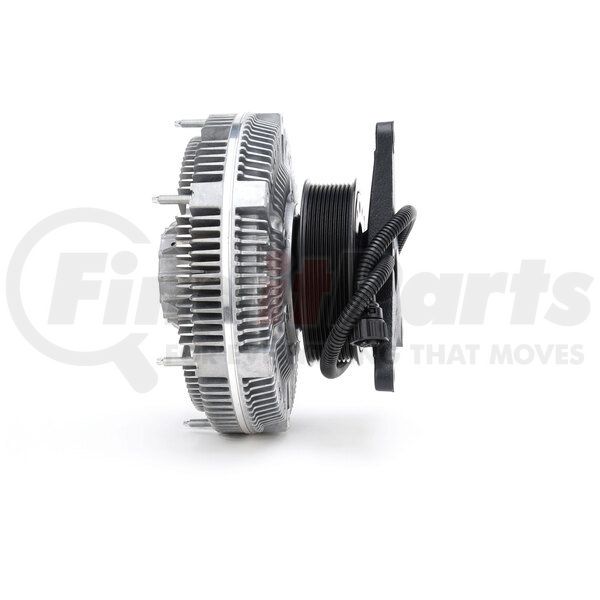

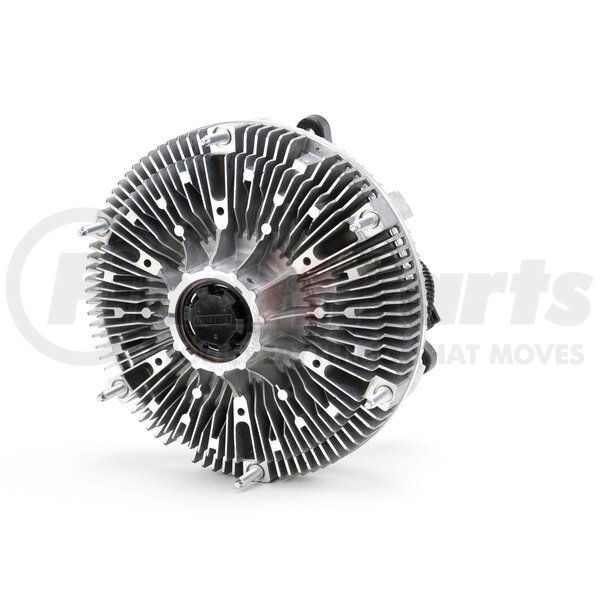

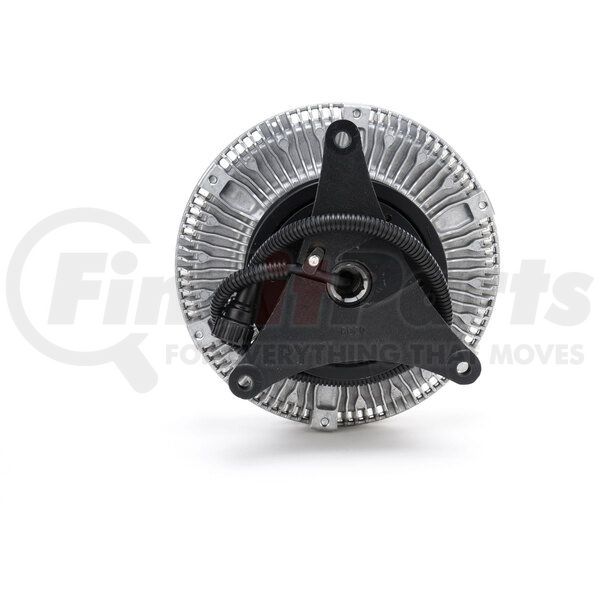

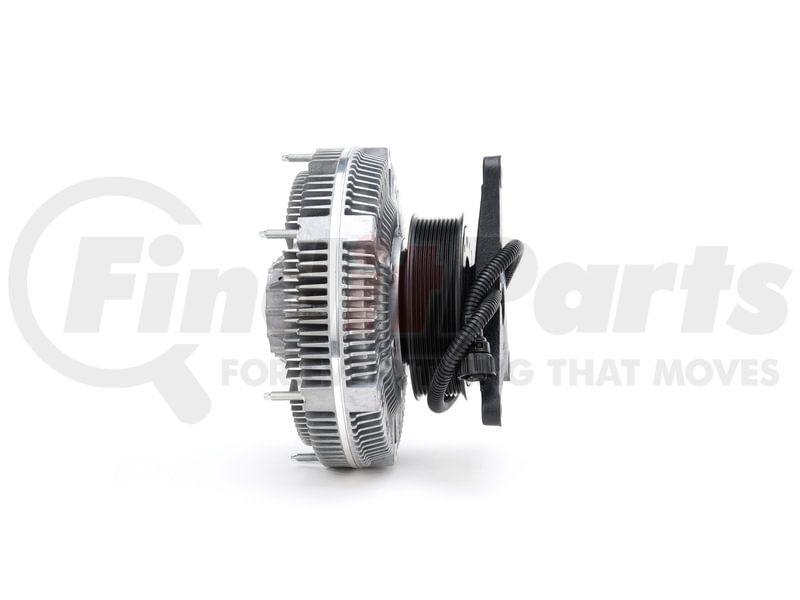

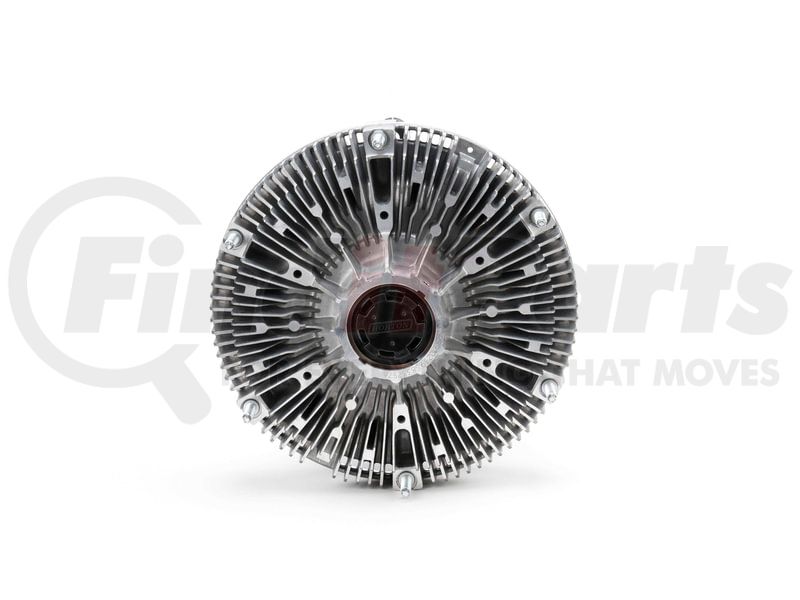

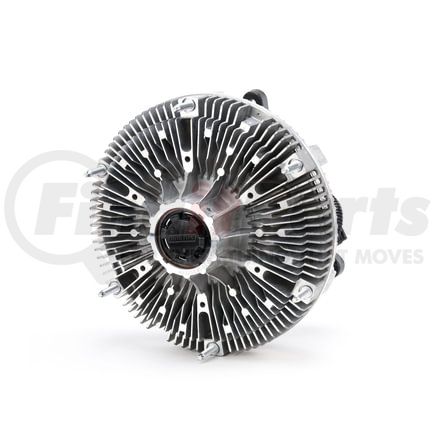

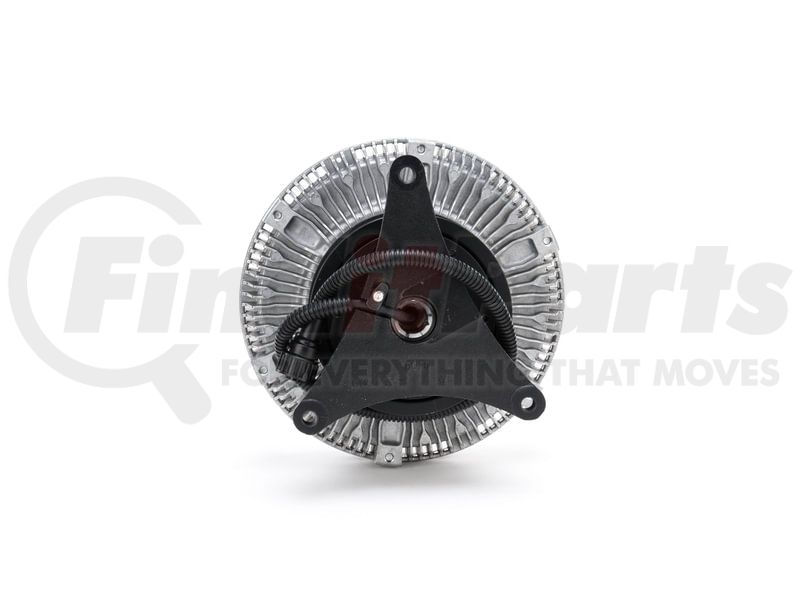

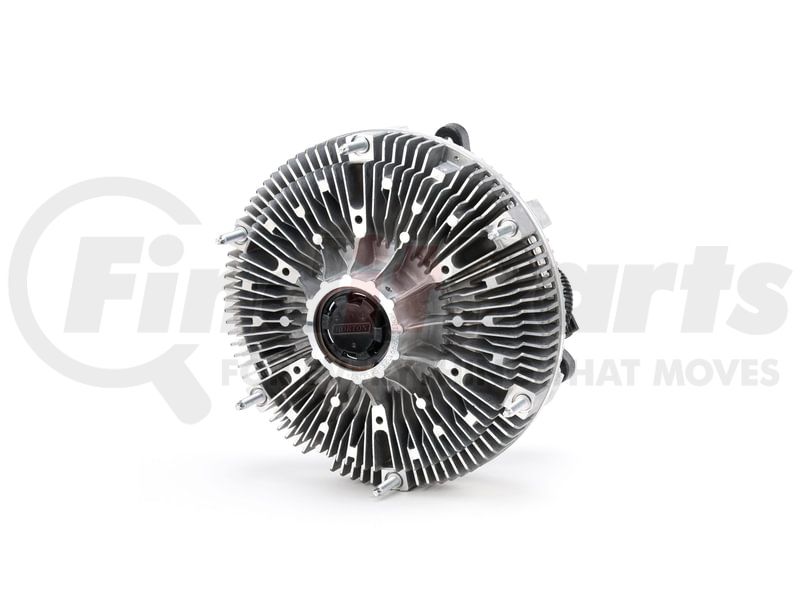

RCV250 Fully-Variable Fan Drive

Application Summary

MACK

Viscous fan drive, engine cooling system, fully variable

Product Attributes

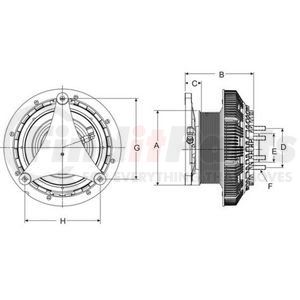

BACK PULLEY DIAMETER 6.1 IN
BELT CONFIGURATION 10K
Belt Groove Location 1.48 IN
Center of JB To Top Right Mounting Hole 4.39 IN
Connector Type TYCO 987650-1
Fan Bolt Circle 10.11 IN
FAN PILOT DIAMETER 9.29 IN
Heavy Duty TRUE
HORIZONTAL MOUNTING DISTANCE 6.73 IN
MTG STUD LENGTH 1.22 IN
Overall Length 6.13 IN
Stud Thread Size M8 X 1.25 IN
VERTICAL MOUNTING DISTANCE 7.21 IN
Voltage 12V
Wire Length 25.04 IN

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8505200000
Harmonized Tariff Code (HTS) 8505200000
NAFTA Preference Criterion Code B
OEM's Part Number 9810239
Warranty Distance 200000
Warranty Distance UOM DH
Warranty Special 2500 Hours
Warranty Special UOM TX
Warranty Time 24
Warranty Time UOM MO
VMRS Code 042003036

Part Interchanges

HORTON 9910239 Cross Reference

We have 5 alternatives for the 9910239 by HORTON:
