WAGNER BD125727E Part Description
Manufacturer
Product Description

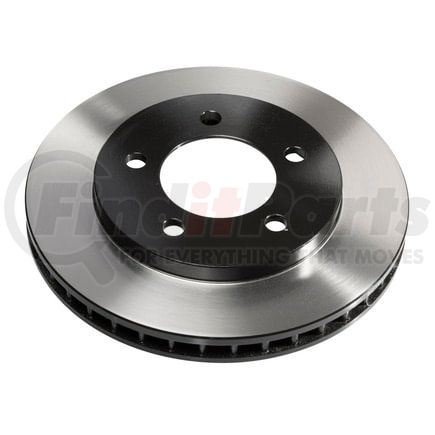

Brake Rotor
Application Summary
Ford Expedition (F) 02-97; Lincoln Navigator (F) 02-98
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield® protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD125727E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 1.185 IN |
| Nominal Thickness | 30.1 MM |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 12.120 IN |
| Outside Diameter | 308.1 MM |
| Height | 1.877 IN |
| Height | 47.7 MM |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Overall Height | 1.877 IN |
| Overall Height | 47.7 MM |
| Part Description | Disc Brake Rotor |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Center Hole Diameter | 92.4 MM |
| Center Hole Diameter | 3.640 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 27.7 MM |
| Discard Thickness | 1.091 IN |
| Mounting Bolt Hole Circle Diameter | 135.0 MM |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Mounting Bolt Hole Diameter | 16.1 MM |
| Mounting Bolt Hole Diameter | 0.633 IN |
| Prop 65 Label (Yes/No) | No |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305020 |
| Remanufactured Part | N |
| UPC | 00008536933731 |
| VMRS Code | 013017001 |
| UNSPSC | 25171715 |
WAGNER BD125727E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A817 |
| Aimco | 54080 |
| Autospecialty | AR8558 |
| Bendix | 145142, 145275 |
| Bosch | 20010373, 20010351, 16010166 |
| Brembo | 27011 |
| CENTRIC | 120.65088 |
| Carquest | 54080, 54044 |
| Centric Parts | 120.65058, 120.65088, 121.65088, 320.65088F, 121.65058, 320.65058F |
| DuraGo | BR54080-02, BR54080 |
| Duralast | 54080 |
| Dynamic Friction Company | 604-54176, 600-54176 |
| Ford | F75Z1125BC, XL1Z1104AD, XL1Z1125AA, YL1Z1125AA |
| PowerStop | AR8558EVC, AR8558 |
| RAYBESTOS | 66647 |
| Raybestos Brakes | 66647, 66943, 66943R, 66647R, 66647FZN, 66943FZN |
| Universal | 102812 |
| Worldparts Synergy | WS1154080 |
