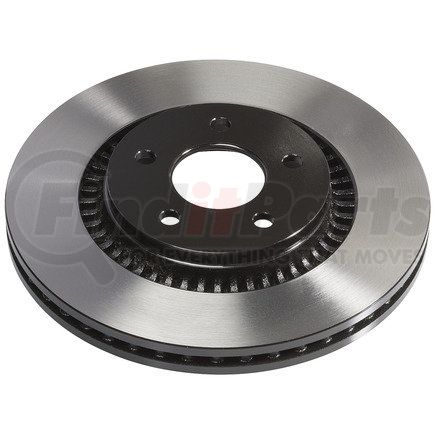

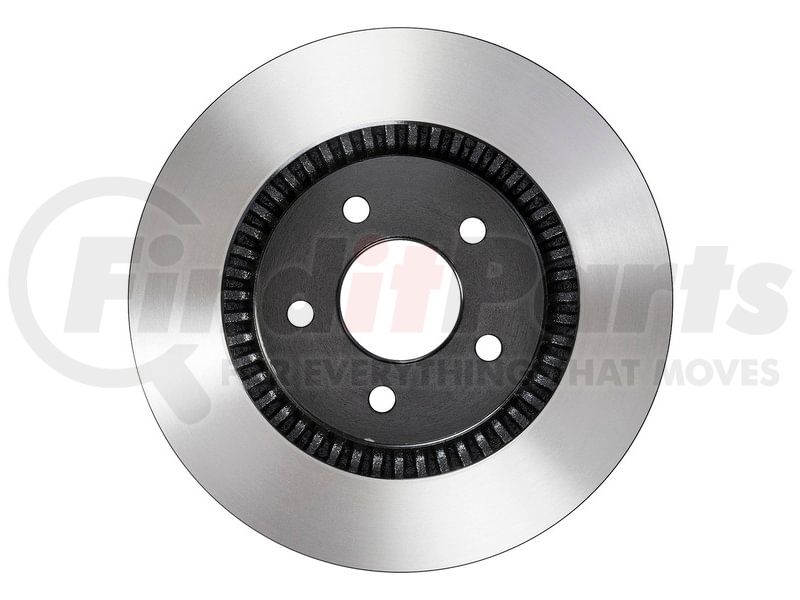

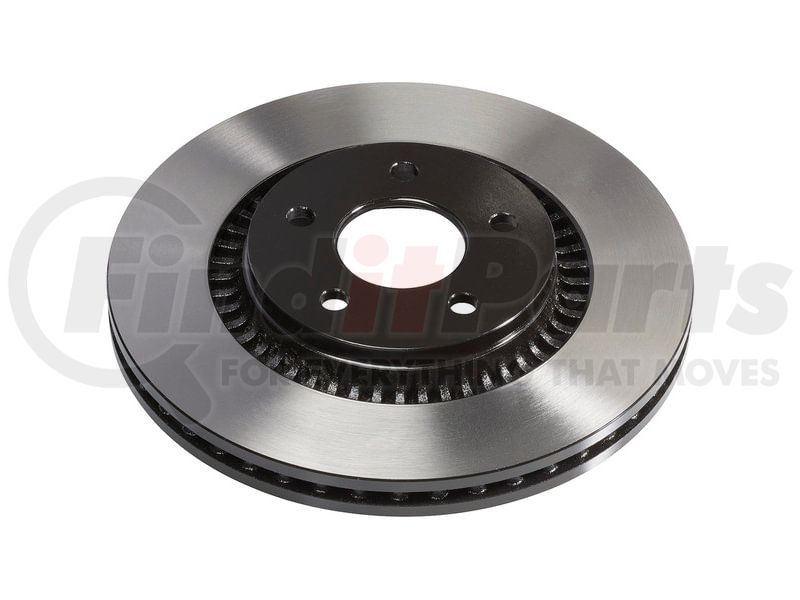

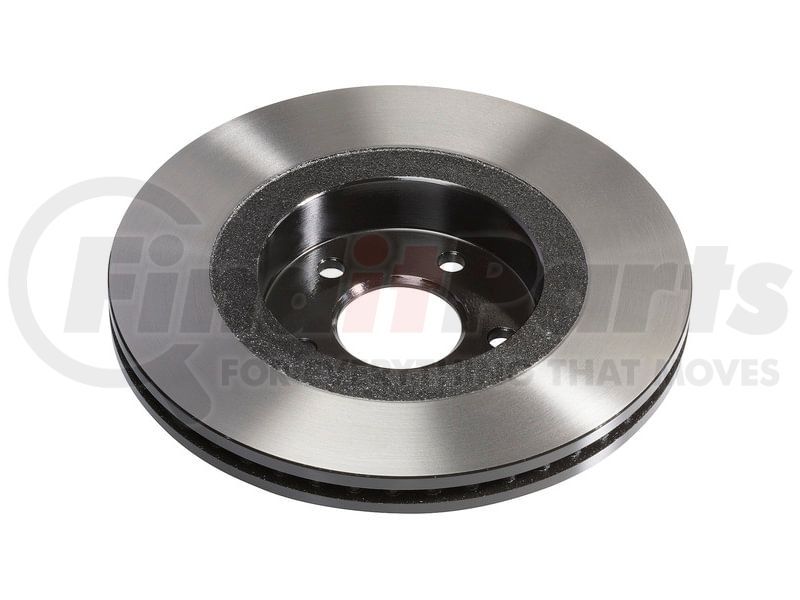

Name: Wagner BD126196E Wagner Brake BD126196E Disc Brake Rotor
SKU: bd126196e
Price: 70.99 USD
Availability: InStock

WAGNER part description

Product Description

Disc Brake Rotor

Application Summary

2005-2007 Ford Five Hundred (Front) (Qualifier: 5 Stud Wheel, with 316 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2005-2007 Ford Freestyle (Front) (Qualifier: 5 Stud Wheel, with 316 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2008-2009 Ford Taurus X (Front) (Qualifier: 5 Stud Wheel, with 316 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2008-2009 Ford Taurus (Front) (Qualifier: 5 Stud Wheel, with 316 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2005-2007 Mercury Montego (Front) (Qualifier: 5 Stud Wheel, with 316 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2008-2009 Mercury Sable (Front) (Qualifier: 5 Stud Wheel, with 316 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)

Features & Benefits

ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance

Product Attributes

Material	Cast Iron
Nominal Thickness	1.104 IN
Disc Finish	Directional
Construction	Full Cast
Rust Resistant Coating	Yes
Outside Diameter	12.411 IN
Surface Type	Smooth
Solid Or Vented Type Rotor	Vented
Height	1.852 in
Part Description	Disc Brake Rotor
Nominal Thickness	28.0 MM
Outside Diameter	315.2 MM

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8708305030
Harmonized Tariff Code (HTS)	8708305030
UPC	00008536946083
VMRS Code	013017001
UNSPSC	25171705

Part Interchanges
