WAGNER BD126484E Part Description
Manufacturer
Product Description

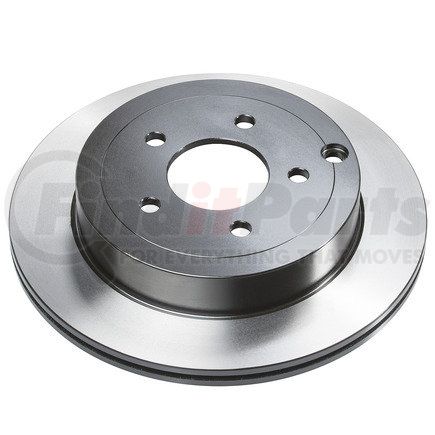

Disc Brake Rotor
Application Summary
2007-2010 Ford Edge (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 302mm Diameter Rotor); 2007-2010 Lincoln MKX (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 302mm Diameter Rotor); 2007-2012 Mazda CX-7 (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 302mm Diameter Rotor)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD126484E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 0.709 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 11.882 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 2.232 in |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 18.0 MM |
| Outside Diameter | 301.8 MM |
| Stud/Lug Hole Quantity | 5 |
| Overall Height | 2.232 IN |
| Overall Height | 56.7 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536944966 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD126484E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A2474A, 18A2474AC, 18A2474 |
| AISIN | K6R390U |
| Autospecialty | JBR1397 |
| Bosch | 34010914, 20010513 |
| BrakeBest Select Drum/Rotor | 680546RGS, 680546PRM |
| CENTRIC | 120.45077 |
| Carquest Platinum Painted Rotors | YH145703P |
| Carquest Platinum Plus Coated Rotors | YH145703C |
| Carquest Wearever | YH145703 |
| Centric Parts | 120.45077, 120.61091, 121.61091, 12045077, 12061091, 12161091, 120.45077CRY, 121.45077, 320.45077F |
| DuraGo | BR900300, BR900300-01, BR900300-02, BR900352, BR900352-01, BR900352-02 |
| Duralast | 42256 |
| Dynamic Friction Company | 600-80067, 604-80067 |
| FAG MX | BRR123410 |
| FRITEC | FR08112 |
| Ford | 9T4Z2C026A |
| Mazda | L20626251, L20626251B, L20626251C, L52826251 |
| NAPA BRAKES | 880546CR, 48880546, 248880546 |
| PowerStop | JBR1397EVC, JBR1397, AR8191 |
| Pro-Series | PS44638, C08005, C07374, C26484 |
| RAYBESTOS | 980523R, 980523 |
| Raybestos Brakes | 680546, 980523, 980523R, 980523FZN |
| Winhere | 6620790 |
| Worldparts Synergy | WS1154156, WS1231459 |
WAGNER BD126484E Fits Vehicles
- Lincoln MKX (2007-2010)
- Ford Edge (2007-2010)
- Mazda CX-7 (2007-2012)
