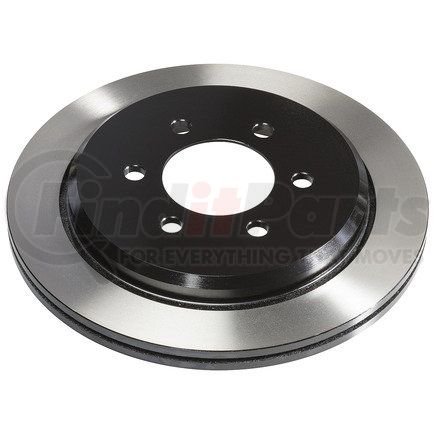

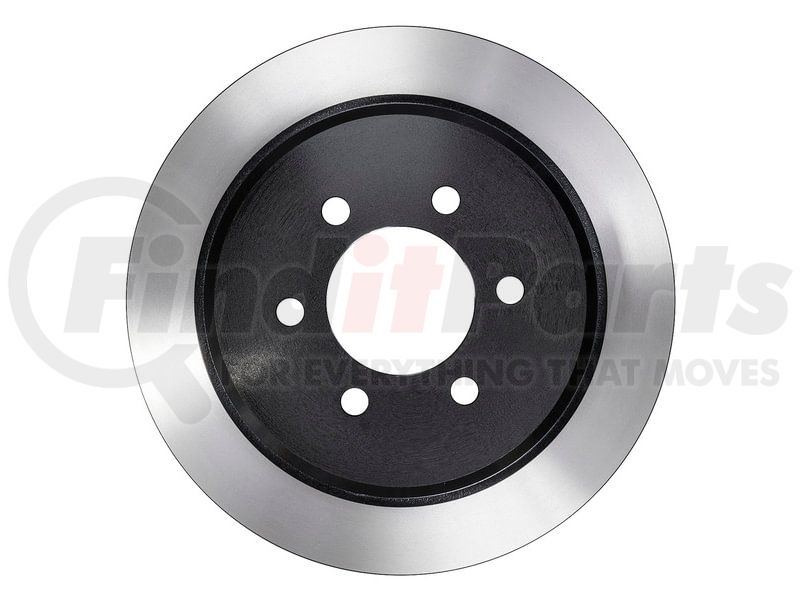

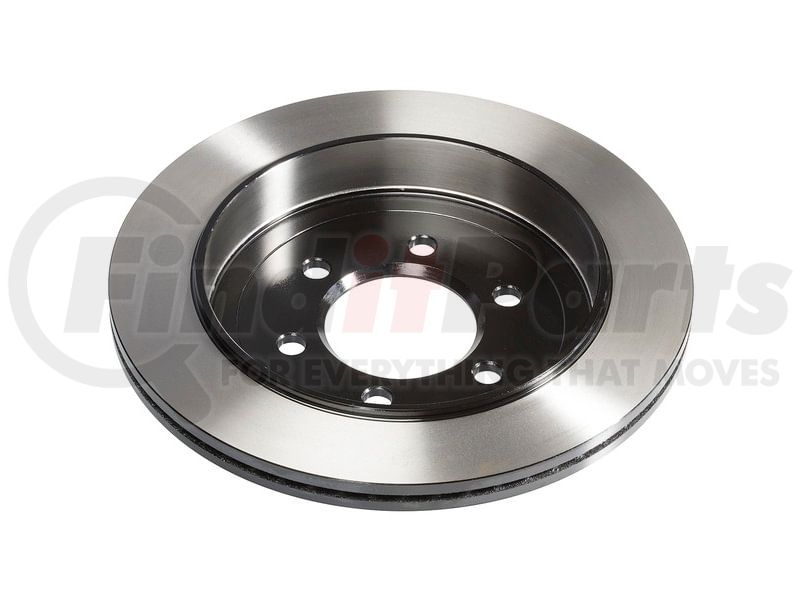

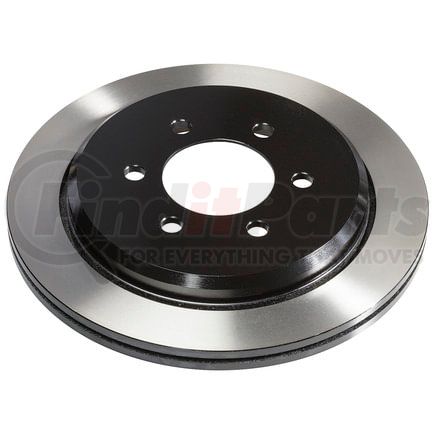

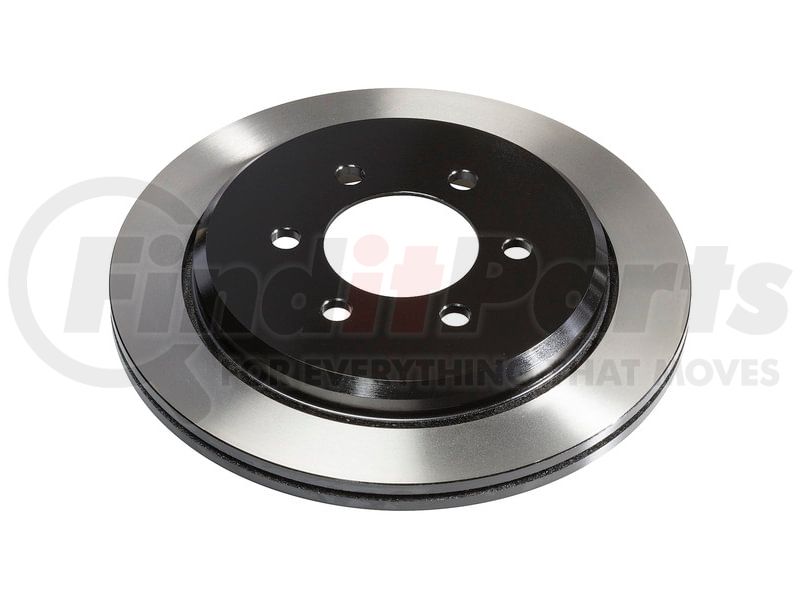

WAGNER BD125781E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
2003-2006 Ford Expedition (Rear) (Qualifier: 6 Stud Wheel, with 342 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2003-2006 Lincoln Navigator (Rear) (Qualifier: 6 Stud Wheel, with 342 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD125781E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 0.867 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 342.1 MM |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 51.8 MM |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 22.0 MM |
| Height | 2.040 in |
| Stud/Lug Hole Quantity | 6 |
| Outside Diameter | 13.472 IN |
| Overall Height | 51.8 MM |
| Overall Height | 2.040 IN |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536947578 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD125781E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A1588, 18A1588PV, 18A1588SD, 18A1588A, 18A1588AC |
| Aimco | 54100 |
| Autospecialty | AR8591 |
| Bendix | 145414 |
| Bosch | 20010349 |
| BrakeBest Select Drum/Rotor | 680106RGS |
| Brembo | 27242 |
| Carquest | 54100 |
| Carquest Wearever | YH145414 |
| Centric Parts | 120.65095, 121.65095, 12065095, 12165095, 120.65095CRY, 125.65095, 125.65095CRY, 320.65095F |
| DuraGo | BR54100, BR54100-01, BR54100-02 |
| Duralast | 54100 |
| Dynamic Friction Company | 600-54181, 604-54181 |
| Ford | 2L1Z2C026AA, 6L1Z2C026A |
| NAPA | 48880106, 880106 |
| NAPA BRAKES | 880106CR, RA880106, 48880106, 248880106 |
| PowerStop | AR8591, AR8591EVC |
| RAYBESTOS | 680106P, 680106, 680106R |
| Raybestos Brakes | 680106, 680106P, 680106R, 680106FZN, 680106PER |
WAGNER BD125781E Fits Vehicles
- Lincoln Navigator (2003-2006)
- Ford Expedition (2003-2006)
