Name: Raybestos 680106 Brake Parts Inc Raybestos Specialty - Truck Disc Brake Rotor
SKU: 680106
Price: 44.99 USD
Availability: InStock

RAYBESTOS part description

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

Product Description

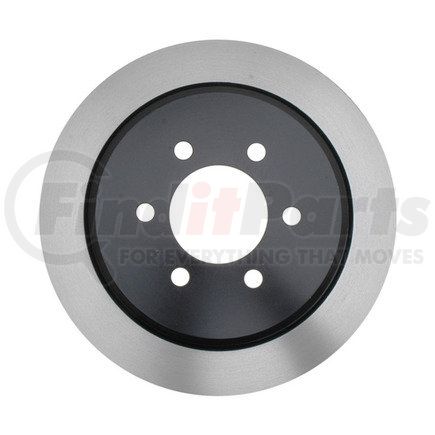

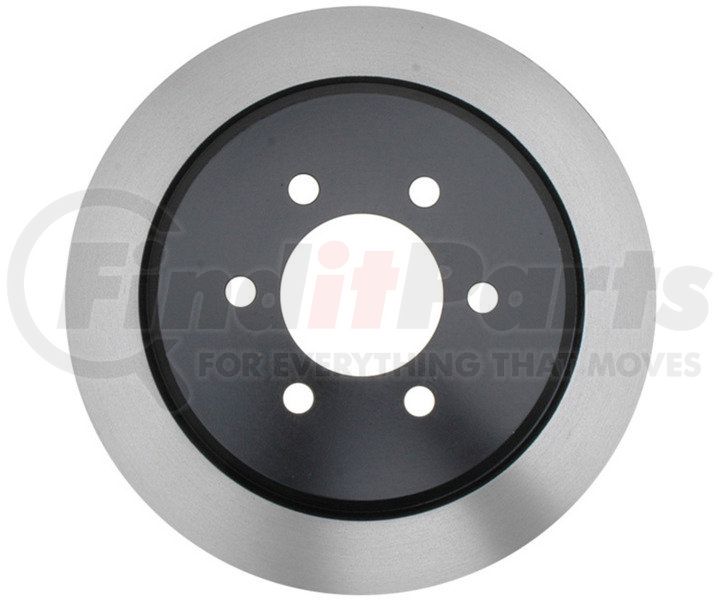

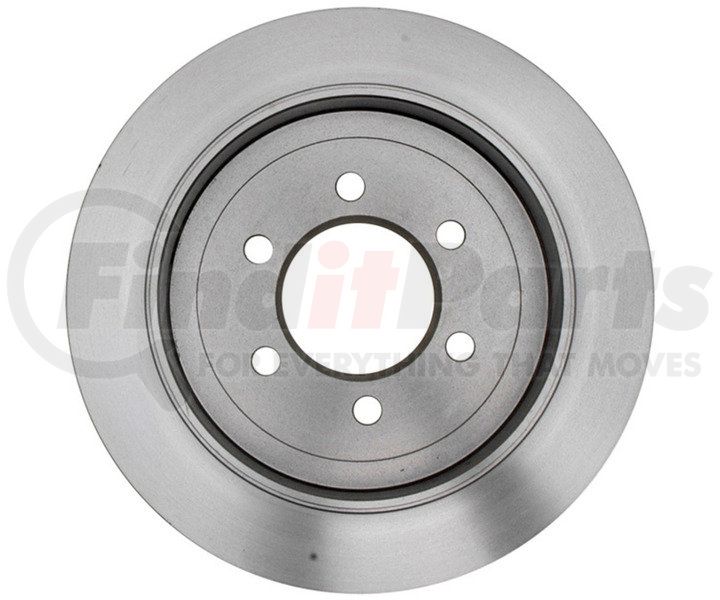

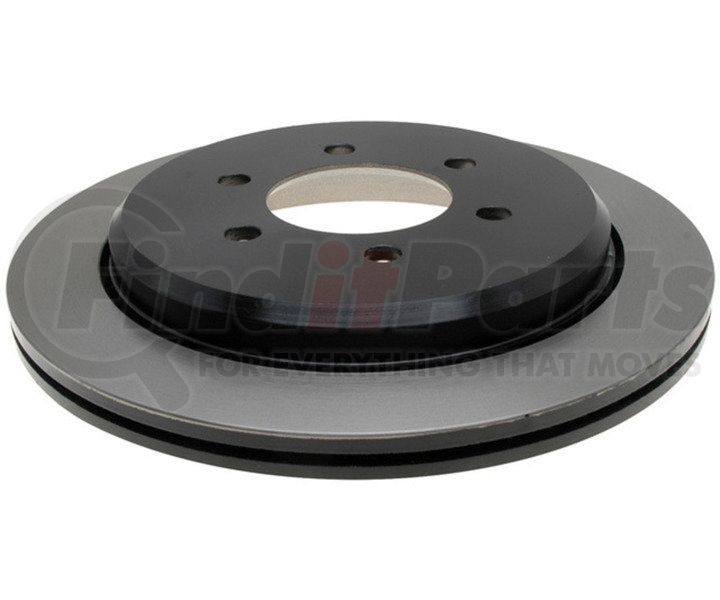

Raybestos Specialty - Truck Brake Rotor

Application Summary

2006-2003 Ford Expedition Rear, 2006-2003 Lincoln Navigator Rear

Product Attributes

ABS Tone Ring Included	No
Center Hole Diameter	3.54 IN
Center Hole Diameter	89.9 MM
9565	Drum-In-Hat
9540	No
Discard Thickness	0.748 IN
Discard Thickness	19 MM
Harmonize Code	8708.30.5030
Material	Cast Iron
Mounting Bolt Hole Circle Diameter	5.315 IN
Mounting Bolt Hole Circle Diameter	135 MM
Mounting Bolt Hole Diameter	0.636 IN
Mounting Bolt Hole Diameter	16.15 MM
Mounting Bolt Hole Quantity	6
Nominal Thickness	0.865 IN
Nominal Thickness	21.95 MM
Outside Diameter	13.465 IN
Outside Diameter	342 MM
Overall Height	2.025 IN
Overall Height	51.45 MM
Salability Restrictions	No
Solid Or Vented Type Rotor	Vented
Stud/Lug Hole Quantity	6
UNSPSC Code	25171715
