(888) 312-8812 Login SignupRAYBESTOS 982124R Raybestos R-Line Brake Rotor
$122.12
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 982124R Part Description
Manufacturer
Product Description

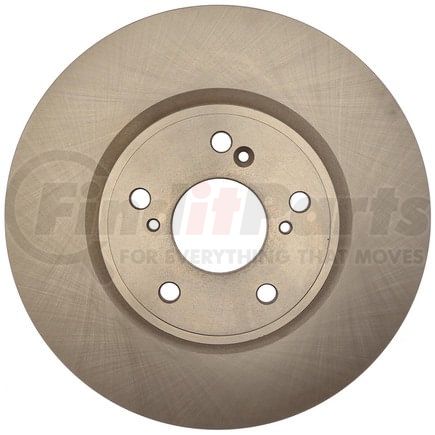

Raybestos R-Line Brake Rotor
Application Summary
2023-2017 Honda CR-V Front, 2023-2018 Honda Accord Front, 2022 Honda Civic Front, 2023 Honda HR-V Front, 2023 Acura Integra Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 982124R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Center Hole Diameter | 2.52 IN |
| Center Hole Diameter | 64 MM |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.618 IN |
| Inside Diameter | 193.5 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 12.276 IN |
| Outside Diameter | 311.8 MM |
| Overall Height | 1.854 IN |
| Overall Height | 47.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213249408 |
RAYBESTOS 982124R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH603440P |
| AUTOPARTSOURCE | 571551 |
| AUTOXTRA | AX901610 |
| Acura | 45251TVCA00 |
| AutoZone | 74040DG, 74040DL |
| BrakeBest | 982124RGS |
| Brembo | 09.E231.11 |
| CENTRIC | 120.40096, 121.40096, 126.40096SL, 126.40096SR, 320.40096 |
| Centric Parts | 120.40096, 121.40096, 126.40096SL, 126.40096SR, 320.40096 |
| DURA CORP | BR901610 |
| DuraGo | BR901610, BR901610-01 |
| Dynamic Friction Company | 600-59064, 604-59064 |
| HONDA | 45251TLAA00, 45251TNYA00, 45251TRNH00, 45251TVCA00 |
| Honda | 452513W0A01 |
| MAGMA PRODUCTS | PMR265116 |
| NEWTEK AUTOMOTIVE | R1610 |
| Newtek Automotive USA | R1610 |
| Promax | 20-610040 |
| Qualis | 44841 |
| TopNotch | TN982124GEO |
| Ultra Brake | HO-5038 |
| WORLDPAC | 1407-603440, 1427-731775 |
| Wagner Brake | BD180726E |
| Winhere | 6622101 |
RAYBESTOS 982124R Fits Vehicles
- Honda HR-V (2023-2025)
- Acura Integra (2023-2025)
- Honda Civic (2022-2025)
- Honda Accord (2018-2024)
- Honda CR-V (2017-2025)
