Tap to view 4 more
*Representative image - actual part not displayed
Centric 128.34170 - Centric Premium OE Style Drilled Brake Rotor
$29449
MSRP: $326.88
Save: $32.39
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

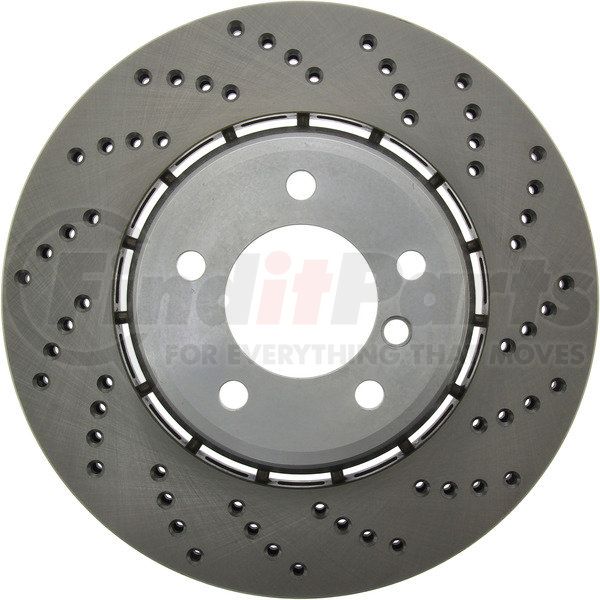

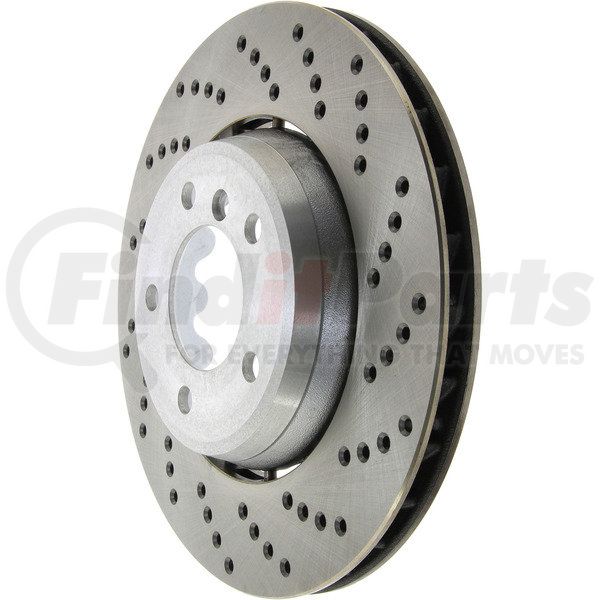

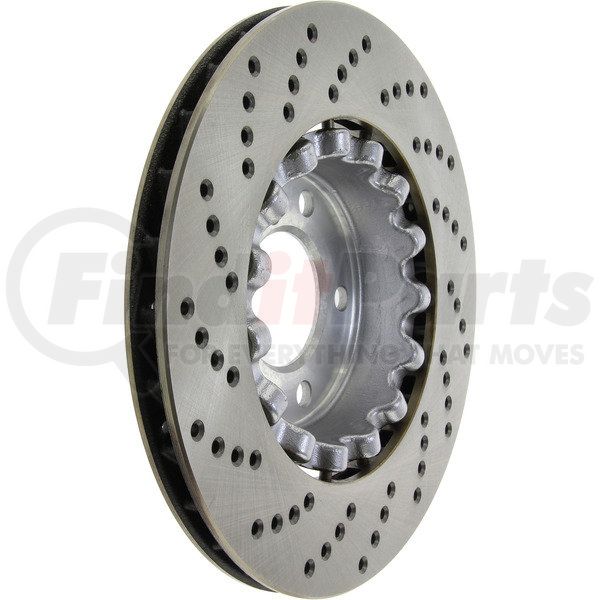

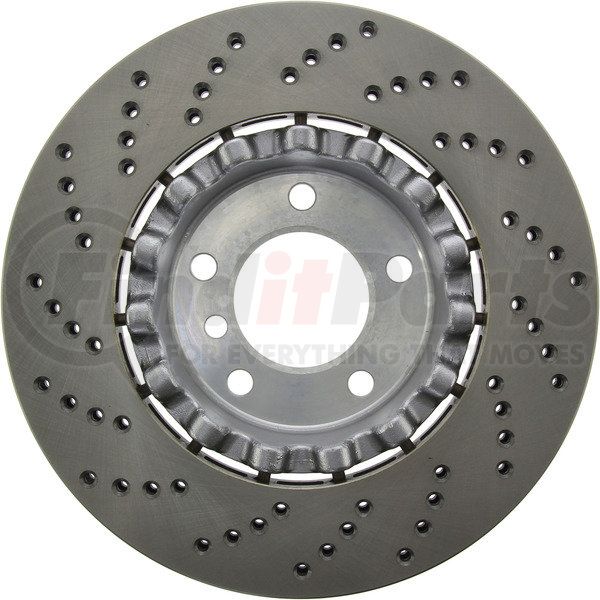

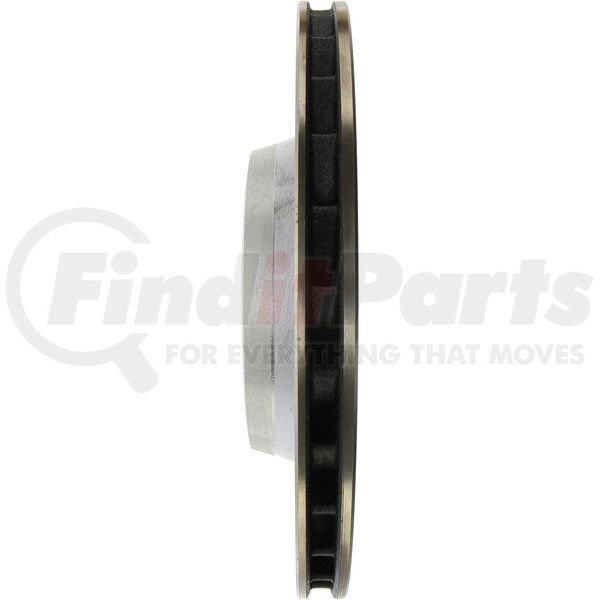

Centric Premium OE Style Drilled Brake Rotor
Features & Benefits
- Premium rotors feature 100% fully machined finishes including rotor hats. This extra process provides better rotor balance and creates a cleaner; more finished looking component
Product Attributes
| Weight [cntrc] Lbs | 16.400 |
| Disc Mounting [cntrc] | Floating |
| OEM Vane Count [cntrc] | 30 |
| Vane Style [cntrc] | Curved |
| Misc Holes [cntrc] | 1 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] Mm | 147.800 |
| Hat Id [cntrc] In | 5.819 |
| Weight [cntrc] Kgs | 7.440 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 23.400 MM |
| Discard Thickness | 0.921 IN |
| Nominal Thickness | 25.000 MM |
| Nominal Thickness | 0.984 IN |
| Hat Finish | Coated |
| Overall Height | 52.800 MM |
| Overall Height | 2.079 IN |
| Outside Diameter | 325.000 MM |
| Outside Diameter | 12.795 IN |
| ABS Tone Ring Included | No |
| Surface Type | X Drilled |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.110 IN |
| Center Hole Diameter | 79.000 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.900 MM |
| Stud/Lug Hole Diameter | 0.626 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590018325 |
Part Interchanges
Fits Vehicles
- BMW Z4 (2003-2008)
- BMW 330i (2001-2005)
- BMW 330Ci (2001-2005)
California residents see Prop 65 Warning(s)
